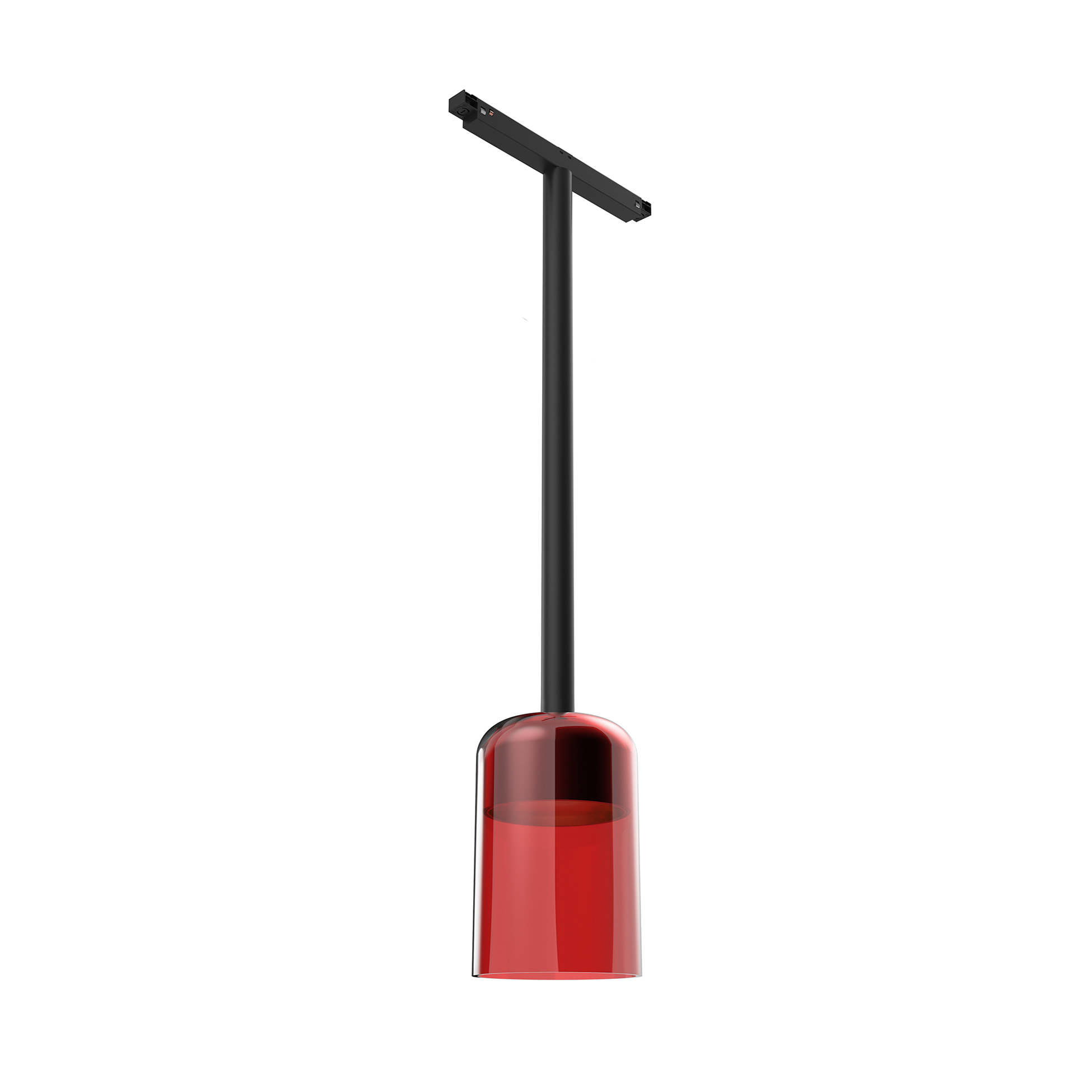

03.8130.RC Red GlassSuspension Glass Downlight 110 Black Rod 100 mm On Board Dimmer
Designed by Vincent Van Duysen, 2017
Suspended luminaire with rigid rod and blown glass in several finishes to be installed in the Infra-Structure system.
LED - LED array - 13.5W - 292lm - 2700K - CRI> 90 - Beam° 42
Technical Drawing
Main specifications
Mounting
Track
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED array
Lamp category
LED
Number of lamps
1
Power (W)
13.5
System power (W)
14
Source flux (lm)
1234
System flux (lm)
292
Efficacy (lm/W)
20.86
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
2
LED Life / Failure Ratio
L80B50 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
42
Beam angle C90-270 (º)
42
UGRL
<16
Electrical
Insulation class
III
Forward voltage (V)
48
Driver
Remote excluded
Dimmable
Yes
Dimming type
Dimmer on board
Dimming interface
Dimmer Integrated
Emergency type
No
Physical
Color
Red Glass
Trim
No
Orientation
Fixed
Length (in)
8.07
IP internal
20
IP external
20
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
