Toio
FU763030 Black

Toio Led

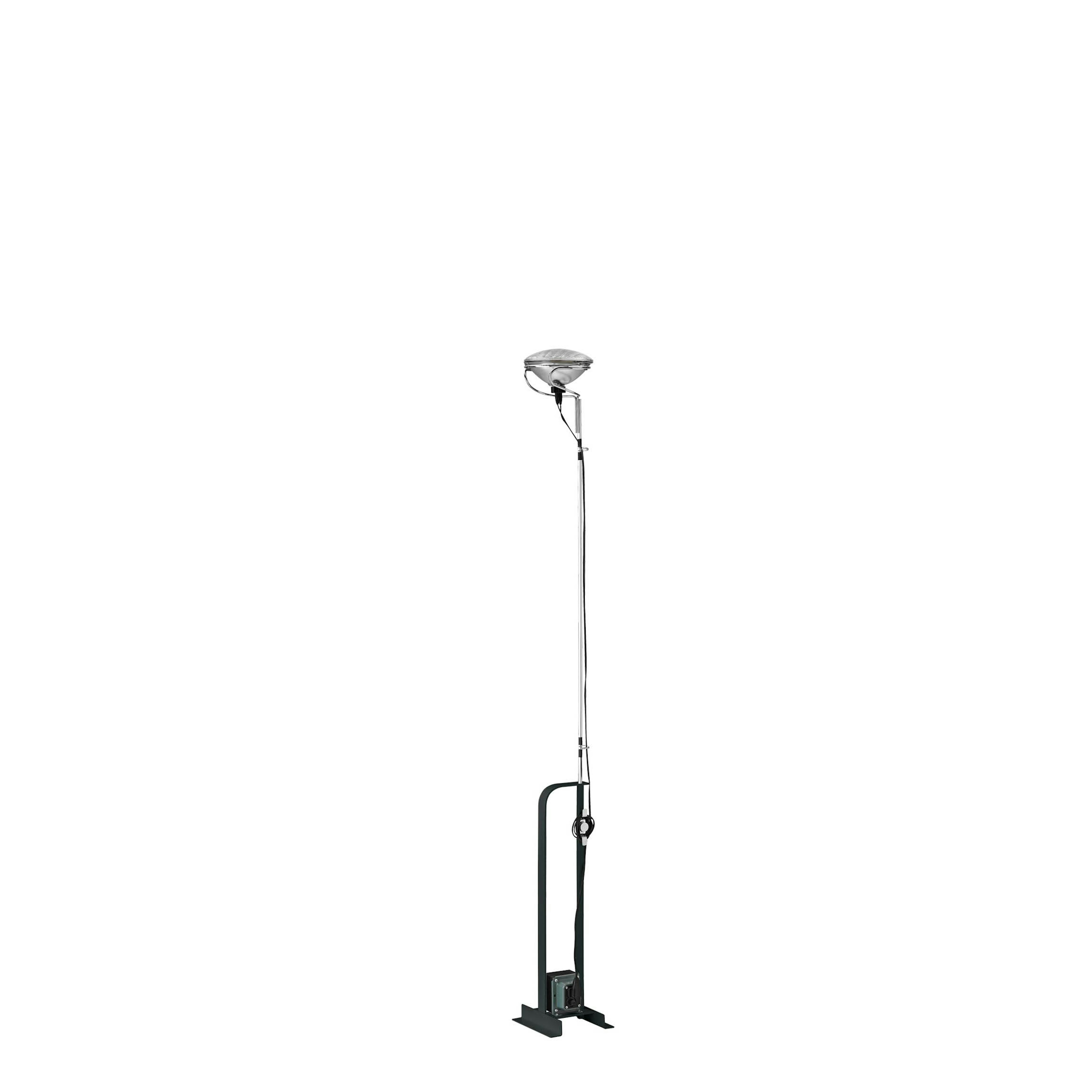

Its designers named it for the English word for "toy," for good reason: This inventive lamp inspires the imagination, blending an industrial style with a timeless and whimsical design. It's easy to see why this legendary favorite-designed by the famed Castiglioni brothers-has garnered so many awards, even earning a place in the permanent collection at the Museum of Modern Art in New York. The Toio floor lamp has an enamel steel base that supports a hexagon shaped, nickel-plated brass stem. Along the stem are fishing rod rings used to guide the electrical cord from the bulb to the transformer. A cleat on the base, like that found on a boat or ship, serves as a functional element designed to keep the cord neatly coiled in when the lamp is adjusted to a lower height. In this version Toio comes with an LED bulb and provides indirect light. Adjustable height. Available in black, red or white finish. Inspiration behind the design: The contemporary floor lamp was designed by brothers Achille and Pier Giacomo Castiglioni, who were inspired by a car's headlight.

LED retrofit - 23W

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Floor-Toio
Main specifications
EAN
8059607035887
Mounting
Floor
Environments
Indoor dry location
Light Source Type
Bulb
Light sources included
Yes
Lamp category
LED retrofit
Lamp type
PAR56
Lamp holders
Gx16d
Number of lamps
1
Power (W)
23
Schematic light drawing
F76000WTOIO_23W-LED
Photometric
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
60
Main voltage (Vac)
120
Dimmable
No
Dimming interface
Switch Integrated (Not Dimmable)
Plug type
Type A
Batteries inside
No
Physical
Color
Black
Length (in)
6.69
Cord color
Black
Cord length (in)
97.244
Net weight (lb)
19.4
Package height (in)
63.78
Package width (in)
10.24
Package length (in)
11.42
Package volume (in)
7453.96
IP internal
20
RETILAP
20
IK00 - 0.00 Joule

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Spare Parts

F7630009-toio-led-flos-boom
01. Nickel plated brass cage
RF02774
02. Toio Led Electric wiring transformer headlight new type
RF36898
03. Rod
RF02775
04. Lamp base
RF02580
05. Toio Led wired ballast
RF7600300
07. Toio Electrical Wiring Assembly With Switch And 2 Pole Plug
RF19220
08. Black d/661 on-off switch
RF04392
09. Wire loop assembly
RF7600100
