Foglio
F2400030 Black

Foglio

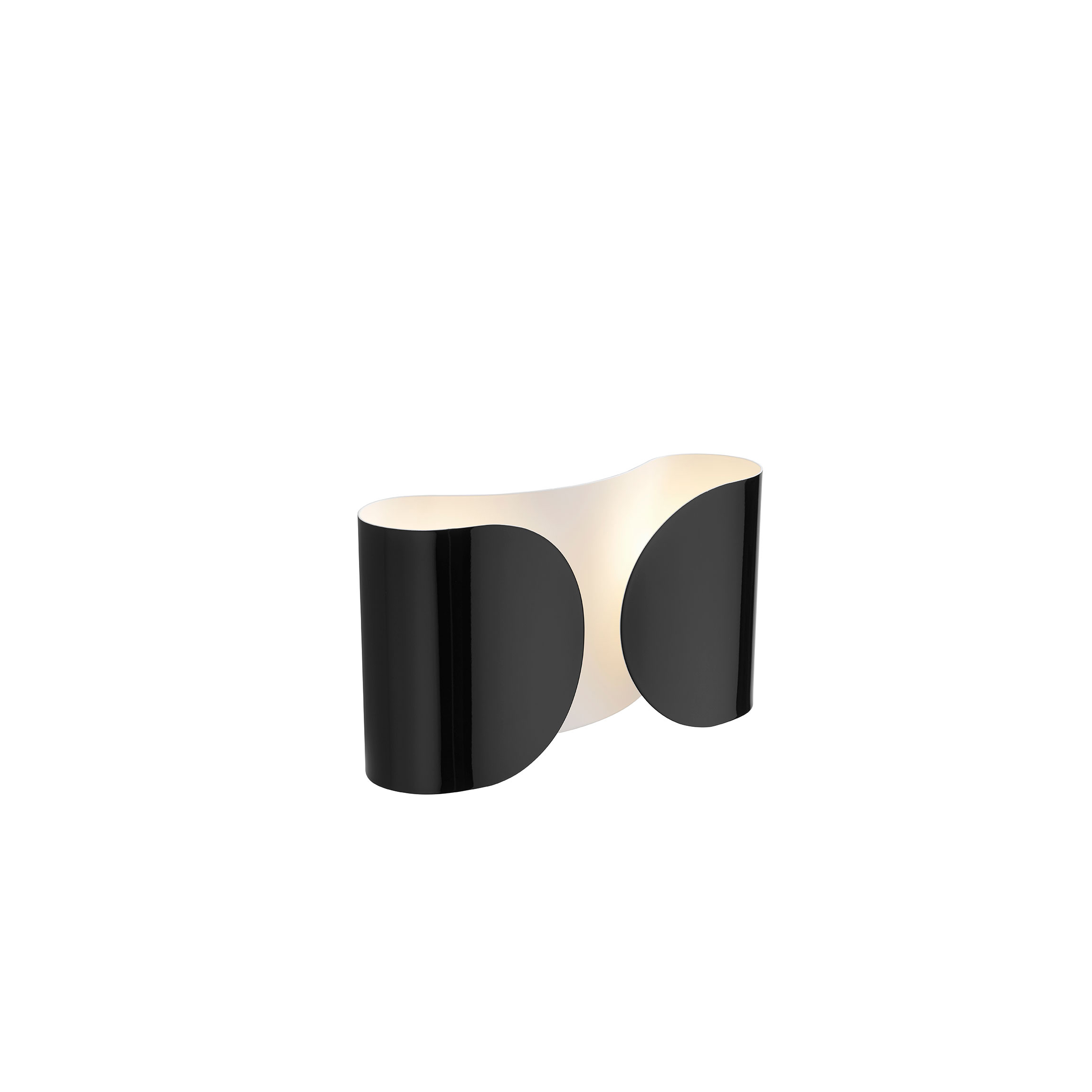

Wall-mounted lamp emitting direct, indirect and partially diffused light. Features wall fitting and diffuser in powder-coated, polished pressed steel. Two lamp holder supports in white injection-moulded nylon.

Designed by Tobia Scarpa in 1966, Foglio transforms the simple gesture of folding a sheet of paper into a sculptural lighting design. Soft curves conceal the source while casting a gentle glow both upward and downward. Minimal yet compelling, it embodies elegance through simplicity. Even when switched off, Foglio remains a sophisticated decorative presence and its timeless form reflects Scarpa’s design philosophy: intuitive, enduring and quietly poetic.

Halogen - 2 x 100W

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Foglio
Main specifications
EAN
8059607015995
Mounting
Wall
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGS
Number of lamps
2
Power (W)
100
Schematic light drawing
F24000XXWFOGLIO_8W-LED
Photometric
Lighting type
Direct, Indirect
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Black
Length (mm)
370
Net weight (kg)
3.6
Package height (mm)
145
Package width (mm)
400
Package length (mm)
240
Package volume (m3)
0.01
IP internal
20
CE
EAC
CMIM
ENEC
IRAM
UKCA
IECEC
RETILAP
Autoprotected Lamp
Gwt 850 (º)
20
IK00 - 0.00 Joule

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Spare Parts

F2400030-foglio-flos-boom
01. Foglio Lamp holder assembly
RF2400100
02. Kit with 3 screws m3
RF06296
