Foglio
F2400057Chrome

Foglio

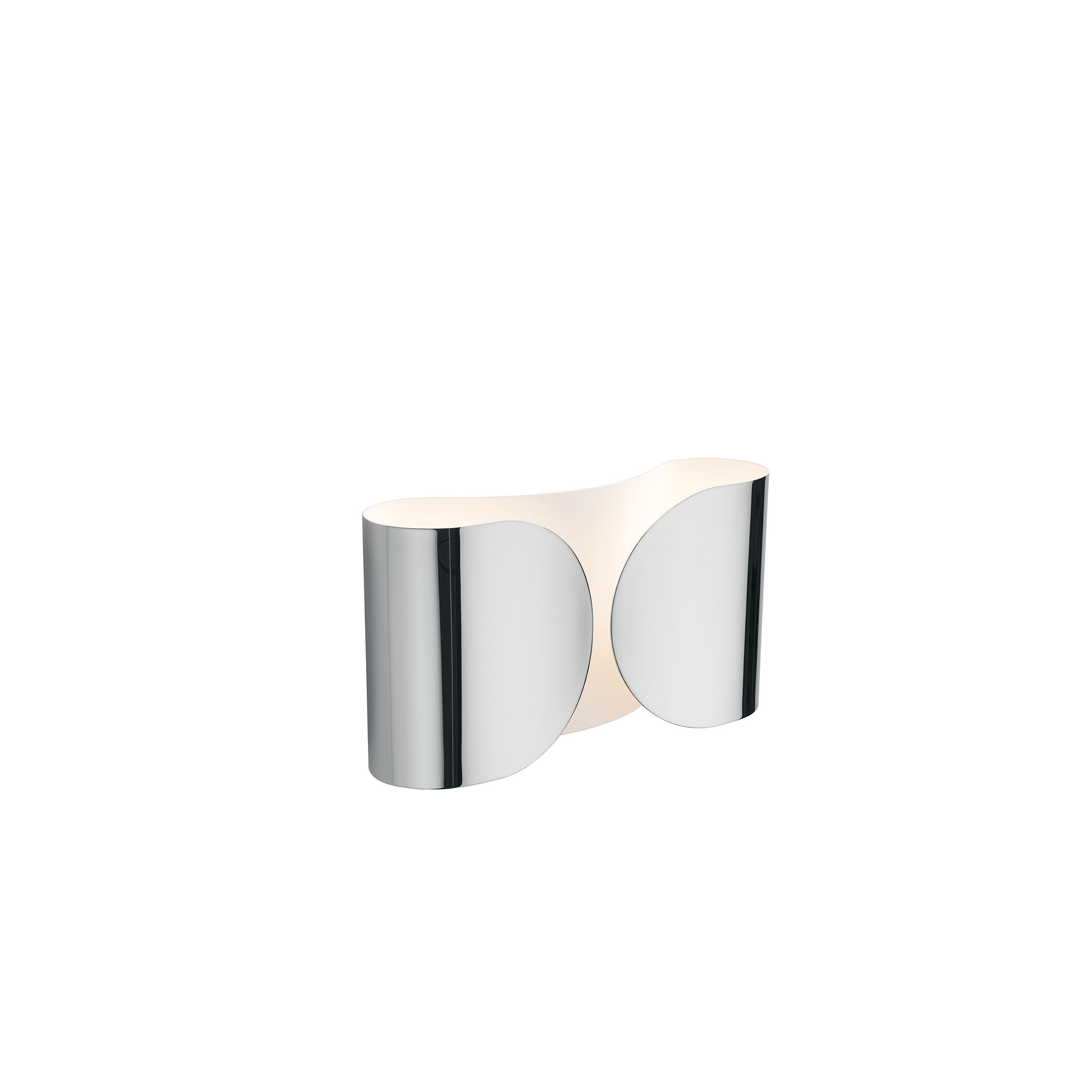

Wall-mounted lamp emitting direct, indirect and partially diffused light. Features wall fitting and diffuser in powder-coated, polished pressed steel. Two lamp holder supports in white injection-moulded nylon.

Halogen - 2 x 100W

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Foglio
Main specifications
EAN
8059607016015
Mounting
Wall
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGS
Number of lamps
2
Power (W)
100
Schematic light drawing
F24000XXWFOGLIO_8W-LED
Photometric
Lighting type
Direct, Indirect
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Chrome
Length (mm)
370
Net weight (kg)
3.9
Package height (mm)
145
Package width (mm)
400
Package length (mm)
240
Package volume (m3)
0.01
IP internal
20
CE
EAC
CMIM
ENEC
IRAM
UKCA
IECEC
RETILAP
Autoprotected Lamp
Gwt 850 (º)
20
IK00 - 0.00 Joule

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Bulbs

Thumbnail
x2
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 2700K A70RF32563
Thumbnail
x2
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 3000K A70RF32564

Spare Parts

F2400057-foglio-flos-boom
01. Foglio Lamp holder assembly new type
RF2400200
02. Kit with 3 screws m3
RF06296
x1
Foglio Lamp holder assembly new typeRF2400200
Thumbnail
x1

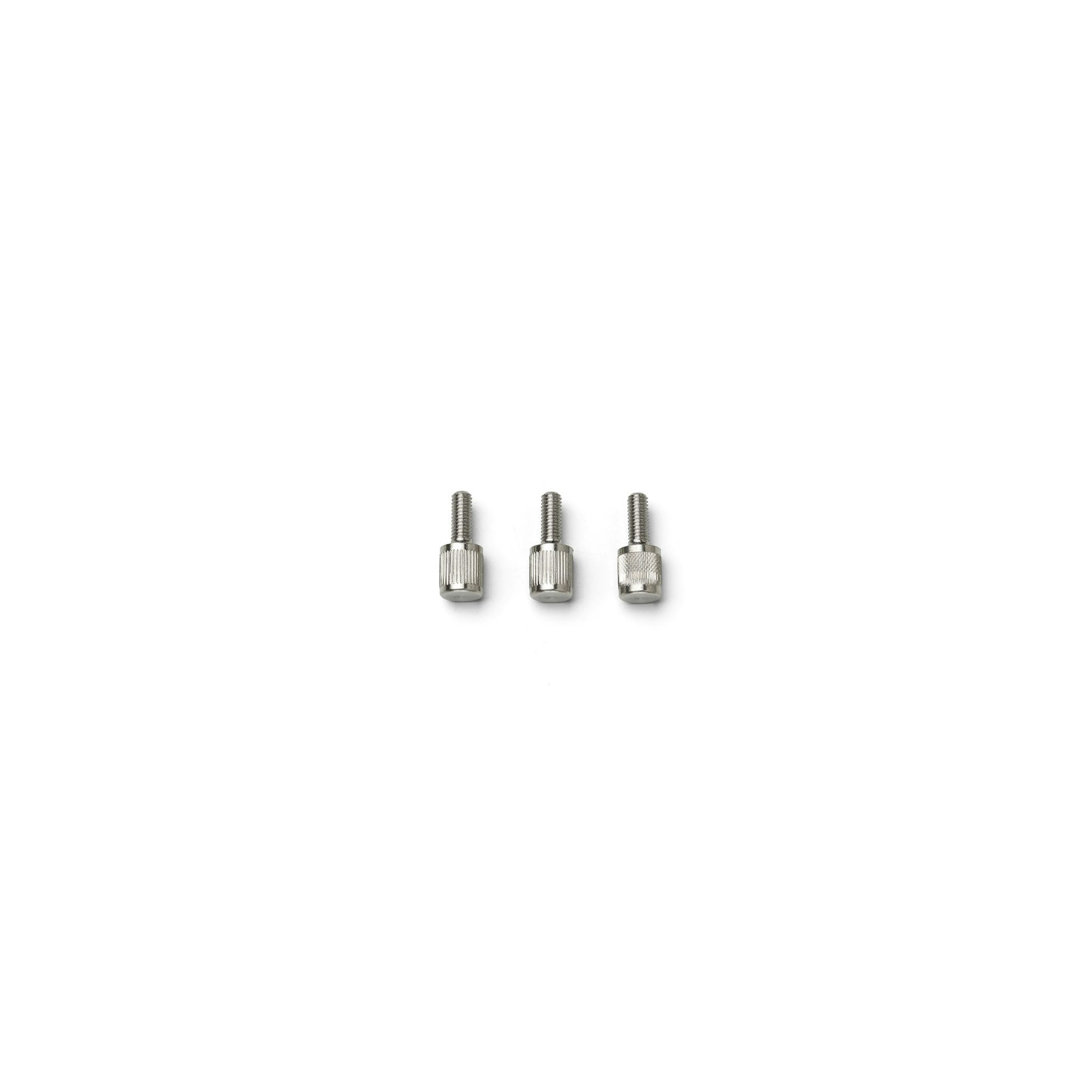

Kit with 3 screws m3RF06296
