Foglio
F2400063 Black Nickel

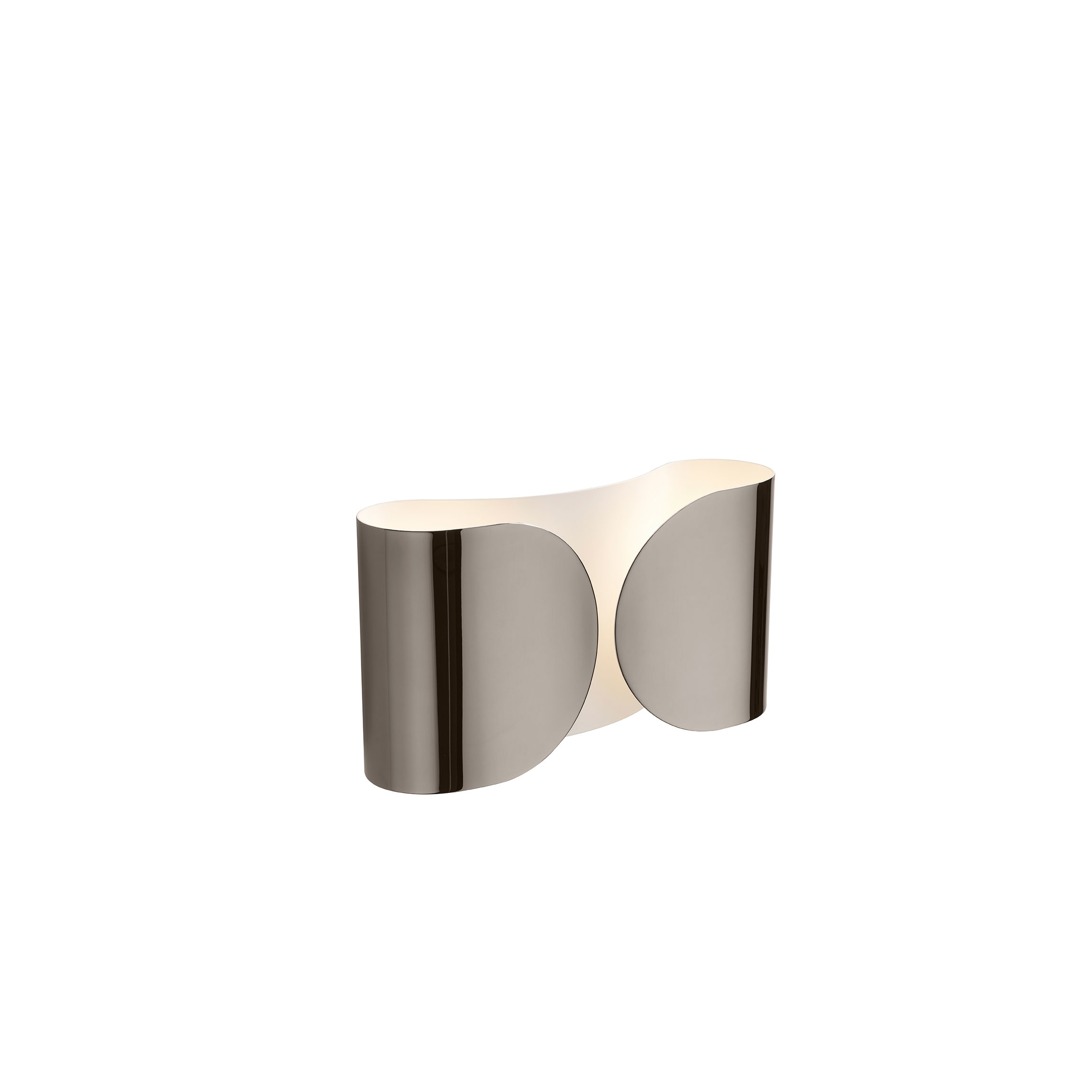

Foglio

Wall lamp providing direct/indirect/partially diffused light. Wall fitting in powder-painted polished white pressed steel. Diffuser in powder-painted polished. Two nylon injection molded white lamp holder supports.

Halogen - 2 x 100W

Find a Flos store
Also available in:
Technical Drawing
foglio-ceiling-wall-scarpa-flos-F2400057-spech-tech-02-300x263
Main specifications
EAN
8059607016022
Mounting
Wall
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGS
Number of lamps
2
Power (W)
100
Schematic light drawing
F24000XXWFOGLIO_8W-LED
Photometric
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Black Nickel
Length (mm)
370
Net weight (kg)
3.63
Package height (mm)
145
Package width (mm)
400
Package length (mm)
240
Package volume (m3)
0.01
IP internal
20
IECEE-CB
CMIM Morocco
EAC
CE
RETILAP
IRAM Argentina
UKCA
CCC
03 - Italy
Gwt 850 (º)
Autoprotected Lamp
20
IK00 - 0.00 Joule

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Bulbs

Spare Parts

F2400063-foglio-flos-boom
01. Foglio Lamp holder assembly
RF2400100
02. Kit with 3 screws m3
RF06296
