Atom 120

Designed by Piero Lissoni

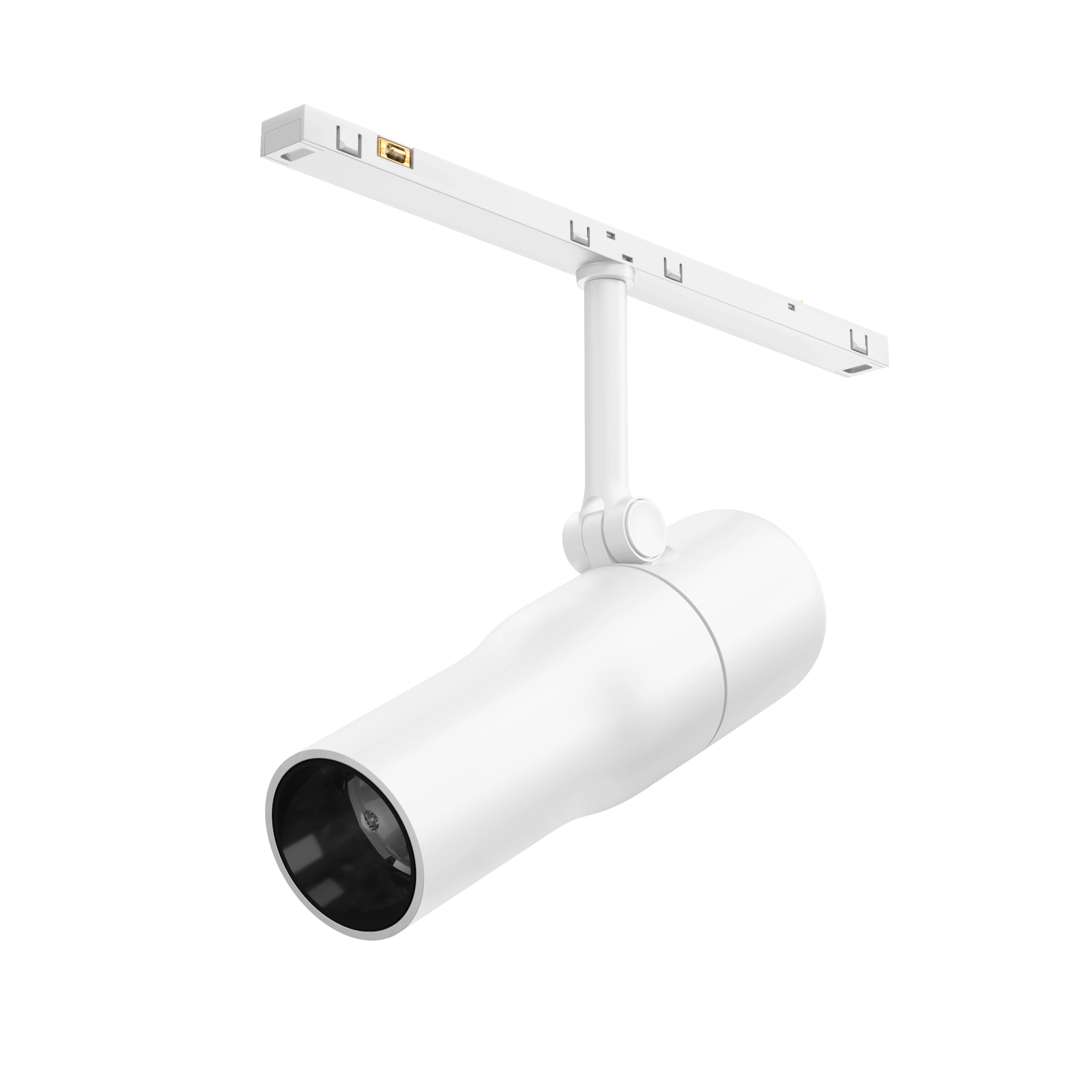

Module d’éclairage LED de projection à installer dans le système Zero Track Pro. Convertisseur électronique CC/CC intégré.

Download Documentation

Product highlight

Tromper l’œil

Système à basse tension innovant composé d’un rail miniaturisé qui s’adapte en toute délicatesse à la surface offrant une variété de luminaires à intensité variable.

Découvrez la Story

Luminaire

(64)

Type d’optique

Flux du système (lm)

CCT (K)

Variable

Certifications

Couleur

Code	Name	Puissance de la source (W)	Flux du système (lm)	CCT (K)	CRI >	Beam angle (º)	Dimming Type	Montage
05.5156.ES.DA	Atom 120 Dali Dimmable	8	373	3000	90	20	Dimmable DALI 2	Rail
05.5156.ES.CB	Atom 120 Casambi Dimmable	8	373	3000	90	20	Dimmable CASAMBI	Rail
05.5156.ES.1V	Atom 120 1-10V Dimmable	8	373	3000	90	20	Dimmable 1-10 V	Rail
05.5156.ES	Atom 120 Non Dimmable	8	373	3000	90	20	-	Rail
05.5156.ER.DA	Atom 120 Dali Dimmable	8	373	3000	90	20	Dimmable DALI 2	Rail
05.5156.ER.CB	Atom 120 Casambi Dimmable	8	373	3000	90	20	Dimmable CASAMBI	Rail
05.5156.ER.1V	Atom 120 1-10V Dimmable	8	373	3000	90	20	Dimmable 1-10 V	Rail
05.5156.ER	Atom 120 Non Dimmable	8	373	3000	90	20	-	Rail
05.5156.40.DA	Atom 120 Dali Dimmable	8	373	3000	90	20	Dimmable DALI 2	Rail
05.5156.40.CB	Atom 120 Casambi Dimmable	8	373	3000	90	20	Dimmable CASAMBI	Rail
05.5156.40.1V	Atom 120 1-10V Dimmable	8	373	3000	90	20	Dimmable 1-10 V	Rail
05.5156.40	Atom 120 Non Dimmable	8	373	3000	90	20	-	Rail
05.5156.14.DA	Atom 120 Dali Dimmable	8	373	3000	90	20	Dimmable DALI 2	Rail
05.5156.14.CB	Atom 120 Casambi Dimmable	8	373	3000	90	20	Dimmable CASAMBI	Rail
05.5156.14.1V	Atom 120 1-10V Dimmable	8	373	3000	90	20	Dimmable 1-10 V	Rail
05.5156.14	Atom 120 Non Dimmable	8	373	3000	90	20	-	Rail
05.5155.ES.DA	Atom 120 Dali Dimmable	8	440	3000	90	14	Dimmable DALI 2	Rail
05.5155.ES.CB	Atom 120 Casambi Dimmable	8	440	3000	90	14	Dimmable CASAMBI	Rail
05.5155.ES.1V	Atom 120 1-10V Dimmable	8	440	3000	90	14	Dimmable 1-10 V	Rail
05.5155.ES	Atom 120 Non Dimmable	8	440	3000	90	14	-	Rail
05.5155.ER.DA	Atom 120 Dali Dimmable	8	440	3000	90	14	Dimmable DALI 2	Rail
05.5155.ER.CB	Atom 120 Casambi Dimmable	8	440	3000	90	14	Dimmable CASAMBI	Rail
05.5155.ER.1V	Atom 120 1-10V Dimmable	8	440	3000	90	14	Dimmable 1-10 V	Rail
05.5155.ER	Atom 120 Non Dimmable	8	440	3000	90	14	-	Rail
05.5155.40.DA	Atom 120 Dali Dimmable	8	440	3000	90	14	Dimmable DALI 2	Rail
05.5155.40.CB	Atom 120 Casambi Dimmable	8	440	3000	90	14	Dimmable CASAMBI	Rail
05.5155.40.1V	Atom 120 1-10V Dimmable	8	440	3000	90	14	Dimmable 1-10 V	Rail
05.5155.40	Atom 120 Non Dimmable	8	440	3000	90	14	-	Rail
05.5155.14.DA	Atom 120 Dali Dimmable	8	440	3000	90	14	Dimmable DALI 2	Rail
05.5155.14.CB	Atom 120 Casambi Dimmable	8	440	3000	90	14	Dimmable CASAMBI	Rail
05.5155.14.1V	Atom 120 1-10V Dimmable	8	440	3000	90	14	Dimmable 1-10 V	Rail
05.5155.14	Atom 120 Non Dimmable	8	440	3000	90	14	-	Rail
05.5151.ES.DA	Atom 120 Dali Dimmable	8	364	2700	90	20	Dimmable DALI 2	Rail
05.5151.ES.CB	Atom 120 Casambi Dimmable	8	364	2700	90	20	Dimmable CASAMBI	Rail
05.5151.ES.1V	Atom 120 1-10V Dimmable	8	364	2700	90	20	Dimmable 1-10 V	Rail
05.5151.ES	Atom 120 Non Dimmable	8	364	2700	90	20	-	Rail
05.5151.ER.DA	Atom 120 Dali Dimmable	8	364	2700	90	20	Dimmable DALI 2	Rail
05.5151.ER.CB	Atom 120 Casambi Dimmable	8	364	2700	90	20	Dimmable CASAMBI	Rail
05.5151.ER.1V	Atom 120 1-10V Dimmable	8	364	2700	90	20	Dimmable 1-10 V	Rail
05.5151.ER	Atom 120 Non Dimmable	8	364	2700	90	20	-	Rail
05.5151.40.DA	Atom 120 Dali Dimmable	8	364	2700	90	20	Dimmable DALI 2	Rail
05.5151.40.CB	Atom 120 Casambi Dimmable	8	364	2700	90	20	Dimmable CASAMBI	Rail
05.5151.40.1V	Atom 120 1-10V Dimmable	8	364	2700	90	20	Dimmable 1-10 V	Rail
05.5151.40	Atom 120 Non Dimmable	8	364	2700	90	20	-	Rail
05.5151.14.DA	Atom 120 Dali Dimmable	8	364	2700	90	20	Dimmable DALI 2	Rail
05.5151.14.CB	Atom 120 Casambi Dimmable	8	364	2700	90	20	Dimmable CASAMBI	Rail
05.5151.14.1V	Atom 120 1-10V Dimmable	8	364	2700	90	20	Dimmable 1-10 V	Rail
05.5151.14	Atom 120 Non Dimmable	8	364	2700	90	20	-	Rail
05.5150.ES.DA	Atom 120 Dali Dimmable	8	433	2700	90	14	Dimmable DALI 2	Rail
05.5150.ES.CB	Atom 120 Casambi Dimmable	8	433	2700	90	14	Dimmable CASAMBI	Rail
05.5150.ES.1V	Atom 120 1-10V Dimmable	8	433	2700	90	14	Dimmable 1-10 V	Rail
05.5150.ES	Atom 120 Non Dimmable	8	433	2700	90	14	-	Rail
05.5150.ER.DA	Atom 120 Dali Dimmable	8	433	2700	90	14	Dimmable DALI 2	Rail
05.5150.ER.CB	Atom 120 Casambi Dimmable	8	433	2700	90	14	Dimmable CASAMBI	Rail
05.5150.ER.1V	Atom 120 1-10V Dimmable	8	433	2700	90	14	Dimmable 1-10 V	Rail
05.5150.ER	Atom 120 Non Dimmable	8	433	2700	90	14	-	Rail
05.5150.40.DA	Atom 120 Dali Dimmable	8	433	2700	90	14	Dimmable DALI 2	Rail
05.5150.40.CB	Atom 120 Casambi Dimmable	8	433	2700	90	14	Dimmable CASAMBI	Rail
05.5150.40.1V	Atom 120 1-10V Dimmable	8	433	2700	90	14	Dimmable 1-10 V	Rail
05.5150.40	Atom 120 Non Dimmable	8	433	2700	90	14	-	Rail
05.5150.14.DA	Atom 120 Dali Dimmable	8	433	2700	90	14	Dimmable DALI 2	Rail
05.5150.14.CB	Atom 120 Casambi Dimmable	8	433	2700	90	14	Dimmable CASAMBI	Rail
05.5150.14.1V	Atom 120 1-10V Dimmable	8	433	2700	90	14	Dimmable 1-10 V	Rail
05.5150.14	Atom 120 Non Dimmable	8	433	2700	90	14	-	Rail
