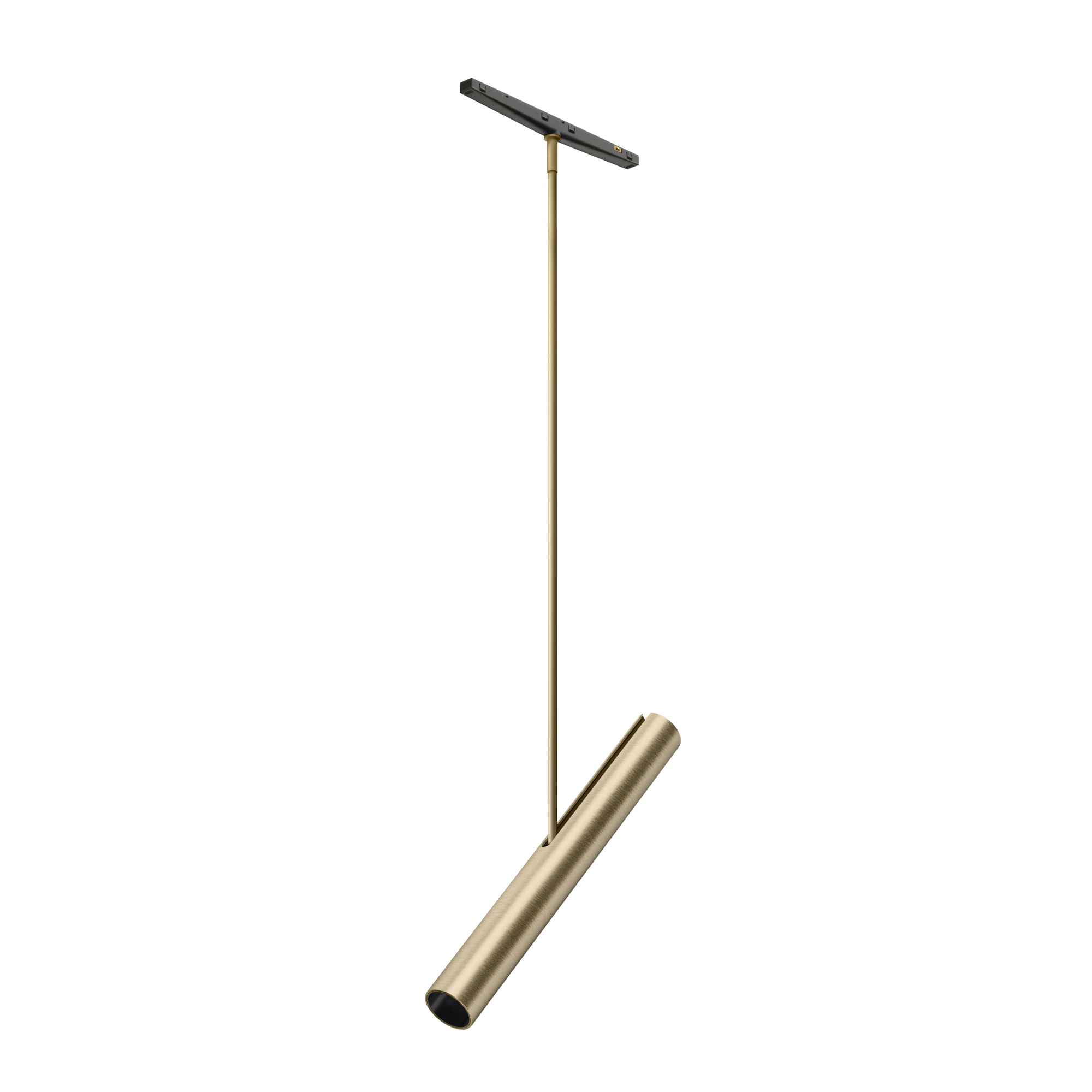

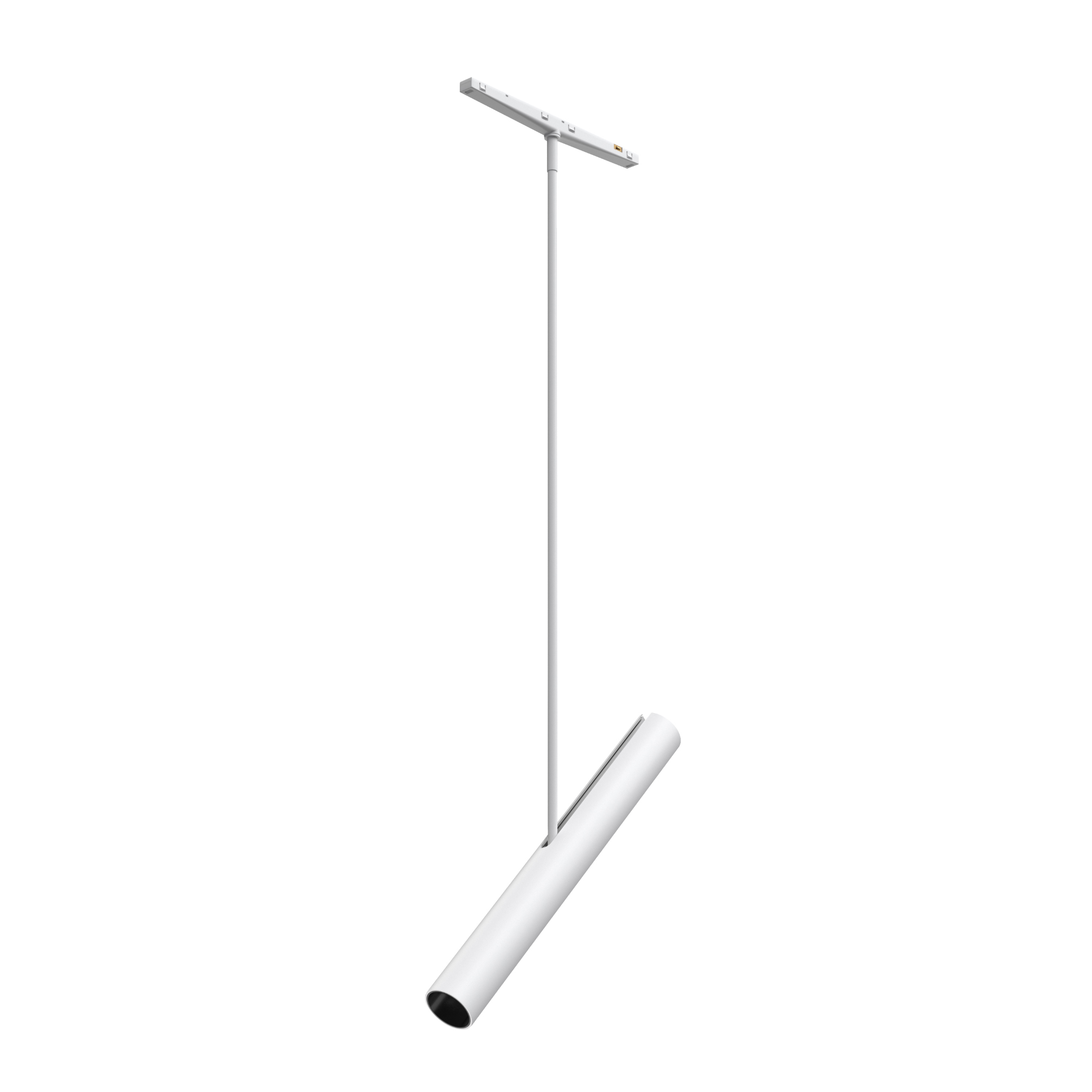

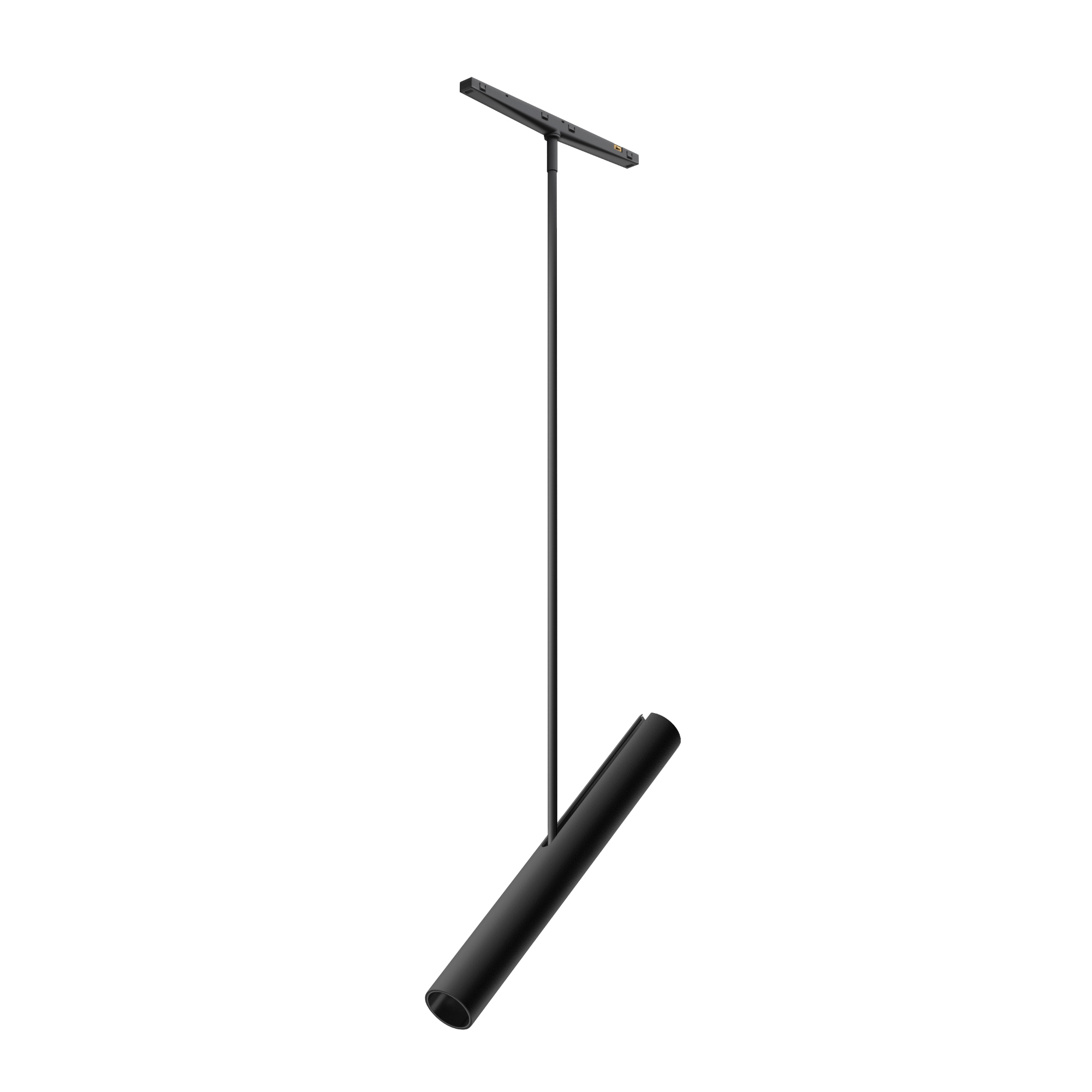

My Spot 35 Long

Designed by Michael Anastassiades

Module d’éclairage LED de projection à installer dans le système Zero Track Pro. Convertisseur électronique CC/CC intégré.

Download Documentation

Product highlight

Tromper l’œil

Système à basse tension innovant composé d’un rail miniaturisé qui s’adapte en toute délicatesse à la surface offrant une variété de luminaires à intensité variable.

Découvrez la Story

Luminaire

(96)

Type d’optique

Flux du système (lm)

CCT (K)

Variable

Certifications

Couleur

Code	Name	Puissance de la source (W)	Flux du système (lm)	CCT (K)	CRI >	Beam angle (º)	Dimming Type	Montage
05.5337.ES.DA	My Spot Ø35 Long Dali Dimmable	8.2	677	3000	90	32	Dimmable DALI 2	Rail
05.5337.ES.CB	My Spot Ø35 Long Casambi	8.2	677	3000	90	32	Dimmable CASAMBI	Rail
05.5337.ES.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	677	3000	90	32	Dimmable 1-10 V	Rail
05.5337.ES	My Spot Ø35 Long Non Dimmable	8.2	677	3000	90	32	Non dimmable	Rail
05.5337.ER.DA	My Spot Ø35 Long Dali Dimmable	8.2	677	3000	90	32	Dimmable DALI 2	Rail
05.5337.ER.CB	My Spot Ø35 Long Casambi	8.2	677	3000	90	32	Dimmable CASAMBI	Rail
05.5337.ER.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	677	3000	90	32	Dimmable 1-10 V	Rail
05.5337.ER	My Spot Ø35 Long Non Dimmable	8.2	677	3000	90	32	Non dimmable	Rail
05.5337.40.DA	My Spot Ø35 Long Dali Dimmable	8.2	677	3000	90	32	Dimmable DALI 2	Rail
05.5337.40.CB	My Spot Ø35 Long Casambi	8.2	677	3000	90	32	Dimmable CASAMBI	Rail
05.5337.40.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	677	3000	90	32	Dimmable 1-10 V	Rail
05.5337.40	My Spot Ø35 Long Non Dimmable	8.2	677	3000	90	32	Non dimmable	Rail
05.5337.14.DA	My Spot Ø35 Long Dali Dimmable	8.2	677	3000	90	32	Dimmable DALI 2	Rail
05.5337.14.CB	My Spot Ø35 Long Casambi	8.2	677	3000	90	32	Dimmable CASAMBI	Rail
05.5337.14.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	677	3000	90	32	Dimmable 1-10 V	Rail
05.5337.14	My Spot Ø35 Long Non Dimmable	8.2	677	3000	90	32	Non dimmable	Rail
05.5336.ES.DA	My Spot Ø35 Long Dali Dimmable	8.2	679	3000	90	21	Dimmable DALI 2	Rail
05.5336.ES.CB	My Spot Ø35 Long Casambi	8.2	679	3000	90	21	Dimmable CASAMBI	Rail
05.5336.ES.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	679	3000	90	21	Dimmable 1-10 V	Rail
05.5336.ES	My Spot Ø35 Long Non Dimmable	8.2	679	3000	90	21	Non dimmable	Rail
05.5336.ER.DA	My Spot Ø35 Long Dali Dimmable	8.2	679	3000	90	21	Dimmable DALI 2	Rail
05.5336.ER.CB	My Spot Ø35 Long Casambi	8.2	679	3000	90	21	Dimmable CASAMBI	Rail
05.5336.ER.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	679	3000	90	21	Dimmable 1-10 V	Rail
05.5336.ER	My Spot Ø35 Long Non Dimmable	8.2	679	3000	90	21	Non dimmable	Rail
05.5336.40.DA	My Spot Ø35 Long Dali Dimmable	8.2	679	3000	90	21	Dimmable DALI 2	Rail
05.5336.40.CB	My Spot Ø35 Long Casambi	8.2	679	3000	90	21	Dimmable CASAMBI	Rail
05.5336.40.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	679	3000	90	21	Dimmable 1-10 V	Rail
05.5336.40	My Spot Ø35 Long Non Dimmable	8.2	679	3000	90	21	Non dimmable	Rail
05.5336.14.DA	My Spot Ø35 Long Dali Dimmable	8.2	679	3000	90	21	Dimmable DALI 2	Rail
05.5336.14.CB	My Spot Ø35 Long Casambi	8.2	679	3000	90	21	Dimmable CASAMBI	Rail
05.5336.14.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	679	3000	90	21	Dimmable 1-10 V	Rail
05.5336.14	My Spot Ø35 Long Non Dimmable	8.2	679	3000	90	21	Non dimmable	Rail
05.5335.ES.DA	My Spot Ø35 Long Dali Dimmable	8.2	613	3000	90	15	Dimmable DALI 2	Rail
05.5335.ES.CB	My Spot Ø35 Long Casambi	8.2	613	3000	90	15	Dimmable CASAMBI	Rail
05.5335.ES.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	613	3000	90	15	Dimmable 1-10 V	Rail
05.5335.ES	My Spot Ø35 Long Non Dimmable	8.2	613	3000	90	15	Non dimmable	Rail
05.5335.ER.DA	My Spot Ø35 Long Dali Dimmable	8.2	613	3000	90	15	Dimmable DALI 2	Rail
05.5335.ER.CB	My Spot Ø35 Long Casambi	8.2	613	3000	90	15	Dimmable CASAMBI	Rail
05.5335.ER.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	613	3000	90	15	Dimmable 1-10 V	Rail
05.5335.ER	My Spot Ø35 Long Non Dimmable	8.2	613	3000	90	15	Non dimmable	Rail
05.5335.40.DA	My Spot Ø35 Long Dali Dimmable	8.2	613	3000	90	15	Dimmable DALI 2	Rail
05.5335.40.CB	My Spot Ø35 Long Casambi	8.2	613	3000	90	15	Dimmable CASAMBI	Rail
05.5335.40.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	613	3000	90	15	Dimmable 1-10 V	Rail
05.5335.40	My Spot Ø35 Long Non Dimmable	8.2	613	3000	90	15	Non dimmable	Rail
05.5335.14.DA	My Spot Ø35 Long Dali Dimmable	8.2	613	3000	90	15	Dimmable DALI 2	Rail
05.5335.14.CB	My Spot Ø35 Long Casambi	8.2	613	3000	90	15	Dimmable CASAMBI	Rail
05.5335.14.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	613	3000	90	15	Dimmable 1-10 V	Rail
05.5335.14	My Spot Ø35 Long Non Dimmable	8.2	613	3000	90	15	Non dimmable	Rail
05.5332.ES.DA	My Spot Ø35 Long Dali Dimmable	8.2	641	2700	90	32	Dimmable DALI 2	Rail
05.5332.ES.CB	My Spot Ø35 Long Casambi	8.2	641	2700	90	32	Dimmable CASAMBI	Rail
05.5332.ES.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	641	2700	90	32	Dimmable 1-10 V	Rail
05.5332.ES	My Spot Ø35 Long Non Dimmable	8.2	641	2700	90	32	Non dimmable	Rail
05.5332.ER.DA	My Spot Ø35 Long Dali Dimmable	8.2	641	2700	90	32	Dimmable DALI 2	Rail
05.5332.ER.CB	My Spot Ø35 Long Casambi	8.2	641	2700	90	32	Dimmable CASAMBI	Rail
05.5332.ER.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	641	2700	90	32	Dimmable 1-10 V	Rail
05.5332.ER	My Spot Ø35 Long Non Dimmable	8.2	641	2700	90	32	Non dimmable	Rail
05.5332.40.DA	My Spot Ø35 Long Dali Dimmable	8.2	641	2700	90	32	Dimmable DALI 2	Rail
05.5332.40.CB	My Spot Ø35 Long Casambi	8.2	641	2700	90	32	Dimmable CASAMBI	Rail
05.5332.40.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	641	2700	90	32	Dimmable 1-10 V	Rail
05.5332.40	My Spot Ø35 Long Non Dimmable	8.2	641	2700	90	32	Non dimmable	Rail
05.5332.14.DA	My Spot Ø35 Long Dali Dimmable	8.2	641	2700	90	32	Dimmable DALI 2	Rail
05.5332.14.CB	My Spot Ø35 Long Casambi	8.2	641	2700	90	32	Dimmable CASAMBI	Rail
05.5332.14.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	641	2700	90	32	Dimmable 1-10 V	Rail
05.5332.14	My Spot Ø35 Long Non Dimmable	8.2	641	2700	90	32	Non dimmable	Rail
05.5331.ES.DA	My Spot Ø35 Long Dali Dimmable	8.2	642	2700	90	21	Dimmable DALI 2	Rail
05.5331.ES.CB	My Spot Ø35 Long Casambi	8.2	642	2700	90	21	Dimmable CASAMBI	Rail
05.5331.ES.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	642	2700	90	21	Dimmable 1-10 V	Rail
05.5331.ES	My Spot Ø35 Long Non Dimmable	8.2	642	2700	90	21	Non dimmable	Rail
05.5331.ER.DA	My Spot Ø35 Long Dali Dimmable	8.2	642	2700	90	21	Dimmable DALI 2	Rail
05.5331.ER.CB	My Spot Ø35 Long Casambi	8.2	642	2700	90	21	Dimmable CASAMBI	Rail
05.5331.ER.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	642	2700	90	21	Dimmable 1-10 V	Rail
05.5331.ER	My Spot Ø35 Long Non Dimmable	8.2	642	2700	90	21	Non dimmable	Rail
05.5331.40.DA	My Spot Ø35 Long Dali Dimmable	8.2	642	2700	90	21	Dimmable DALI 2	Rail
05.5331.40.CB	My Spot Ø35 Long Casambi	8.2	642	2700	90	21	Dimmable CASAMBI	Rail
05.5331.40.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	642	2700	90	21	Dimmable 1-10 V	Rail
05.5331.40	My Spot Ø35 Long Non Dimmable	8.2	642	2700	90	21	Non dimmable	Rail
05.5331.14.DA	My Spot Ø35 Long Dali Dimmable	8.2	642	2700	90	21	Dimmable DALI 2	Rail
05.5331.14.CB	My Spot Ø35 Long Casambi	8.2	642	2700	90	21	Dimmable CASAMBI	Rail
05.5331.14.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	642	2700	90	21	Dimmable 1-10 V	Rail
05.5331.14	My Spot Ø35 Long Non Dimmable	8.2	642	2700	90	21	Non dimmable	Rail
05.5330.ES.DA	My Spot Ø35 Long Dali Dimmable	8.2	580	2700	90	15	Dimmable DALI 2	Rail
05.5330.ES.CB	My Spot Ø35 Long Casambi	8.2	580	2700	90	15	Dimmable CASAMBI	Rail
05.5330.ES.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	580	2700	90	15	Dimmable 1-10 V	Rail
05.5330.ES	My Spot Ø35 Long Non Dimmable	8.2	580	2700	90	15	Non dimmable	Rail
05.5330.ER.DA	My Spot Ø35 Long Dali Dimmable	8.2	580	2700	90	15	Dimmable DALI 2	Rail
05.5330.ER.CB	My Spot Ø35 Long Casambi	8.2	580	2700	90	15	Dimmable CASAMBI	Rail
05.5330.ER.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	580	2700	90	15	Dimmable 1-10 V	Rail
05.5330.ER	My Spot Ø35 Long Non Dimmable	8.2	580	2700	90	15	Non dimmable	Rail
05.5330.40.DA	My Spot Ø35 Long Dali Dimmable	8.2	580	2700	90	15	Dimmable DALI 2	Rail
05.5330.40.CB	My Spot Ø35 Long Casambi	8.2	580	2700	90	15	Dimmable CASAMBI	Rail
05.5330.40.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	580	2700	90	15	Dimmable 1-10 V	Rail
05.5330.40	My Spot Ø35 Long Non Dimmable	8.2	580	2700	90	15	Non dimmable	Rail
05.5330.14.DA	My Spot Ø35 Long Dali Dimmable	8.2	580	2700	90	15	Dimmable DALI 2	Rail
05.5330.14.CB	My Spot Ø35 Long Casambi	8.2	580	2700	90	15	Dimmable CASAMBI	Rail
05.5330.14.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	580	2700	90	15	Dimmable 1-10 V	Rail
05.5330.14	My Spot Ø35 Long Non Dimmable	8.2	580	2700	90	15	Non dimmable	Rail
