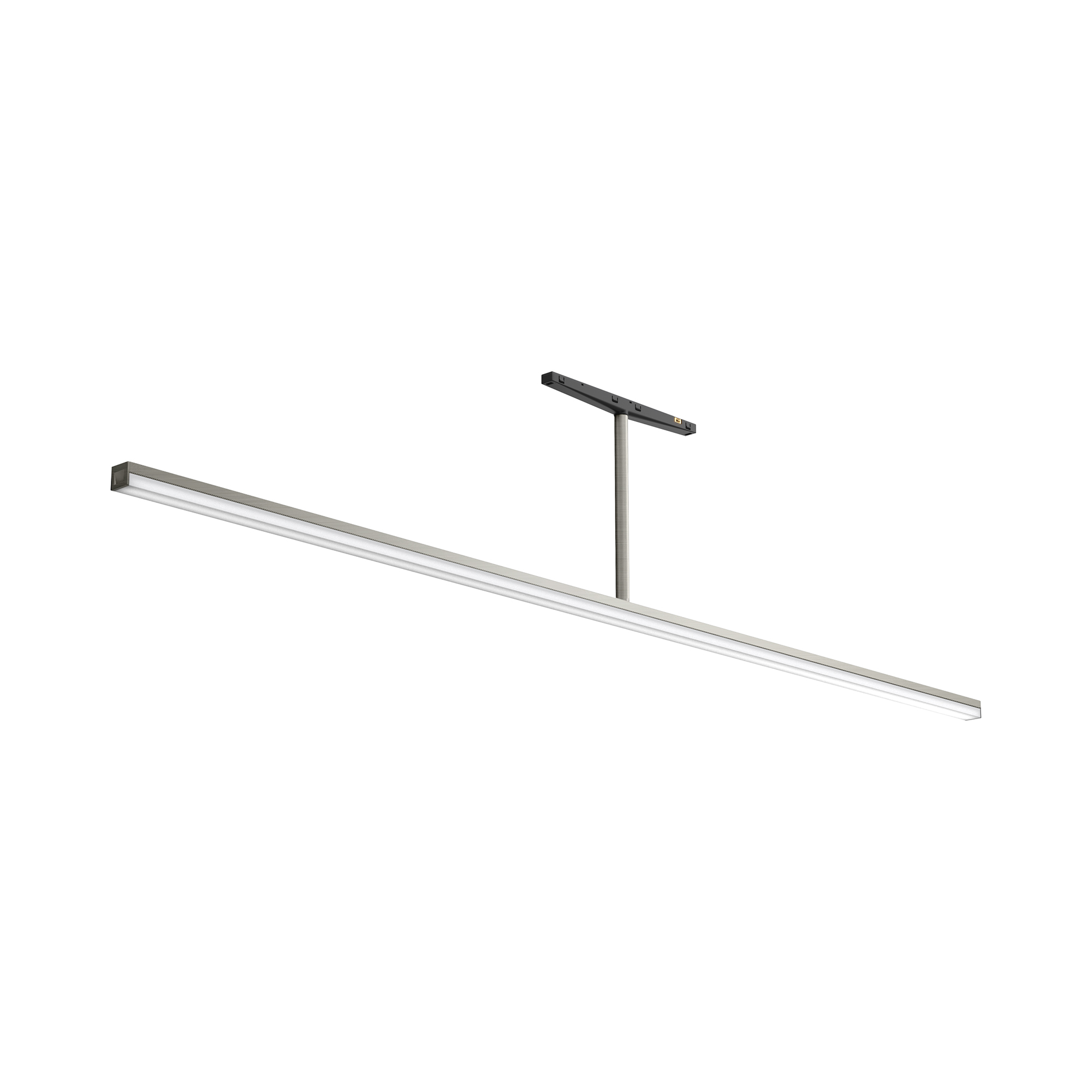

Magic Stick

Designed by Jorge Herrera

Module d’éclairage LED de lumière diffuse à installer dans le système Zero Track Pro. Orientable par rotation depuis son axe central. Convertisseur électronique CC/CC intégré.

Download Documentation

Product highlight

Tromper l’œil

Système à basse tension innovant composé d’un rail miniaturisé qui s’adapte en toute délicatesse à la surface offrant une variété de luminaires à intensité variable.

Découvrez la Story

Luminaire

(48)

Flux du système (lm)

CCT (K)

Variable

Certifications

Couleur

Code	Name	Puissance de la source (W)	Flux du système (lm)	CCT (K)	CRI >	Beam angle (º)	Dimming Type	Montage
05.3221.ES.DA	Magic Stick 145 Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Rail
05.3221.ES.1V	Magic Stick 145 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10 V	Rail
05.3221.ES	Magic Stick 145 Non Dimmable	9.8	608	3000	90	131	Non dimmable	Rail
05.3221.ER.DA	Magic Stick 145 Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Rail
05.3221.ER.1V	Magic Stick 145 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10 V	Rail
05.3221.ER	Magic Stick 145 Non Dimmable	9.8	608	3000	90	131	Non dimmable	Rail
05.3221.40.DA	Magic Stick 145 Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Rail
05.3221.40.1V	Magic Stick 145 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10 V	Rail
05.3221.40	Magic Stick 145 Non Dimmable	9.8	608	3000	90	131	Non dimmable	Rail
05.3221.14.DA	Magic Stick 145 Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Rail
05.3221.14.1V	Magic Stick 145 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10 V	Rail
05.3221.14	Magic Stick 145 Non Dimmable	9.8	608	3000	90	131	Non dimmable	Rail
05.3220.ES.DA	Magic Stick 145 Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Rail
05.3220.ES.1V	Magic Stick 145 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10 V	Rail
05.3220.ES	Magic Stick 145 Non Dimmable	9.8	587	2700	90	131	Non dimmable	Rail
05.3220.ER.DA	Magic Stick 145 Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Rail
05.3220.ER.1V	Magic Stick 145 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10 V	Rail
05.3220.ER	Magic Stick 145 Non Dimmable	9.8	587	2700	90	131	Non dimmable	Rail
05.3220.40.DA	Magic Stick 145 Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Rail
05.3220.40.1V	Magic Stick 145 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10 V	Rail
05.3220.40	Magic Stick 145 Non Dimmable	9.8	587	2700	90	131	Non dimmable	Rail
05.3220.14.DA	Magic Stick 145 Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Rail
05.3220.14.1V	Magic Stick 145 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10 V	Rail
05.3220.14	Magic Stick 145 Non Dimmable	9.8	587	2700	90	131	Non dimmable	Rail
05.3201.ES.DA	Magic Stick 100 Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Rail
05.3201.ES.1V	Magic Stick 100 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10 V	Rail
05.3201.ES	Magic Stick 100 Non Dimmable	9.8	608	3000	90	131	Non dimmable	Rail
05.3201.ER.DA	Magic Stick 100 Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Rail
05.3201.ER.1V	Magic Stick 100 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10 V	Rail
05.3201.ER	Magic Stick 100 Non Dimmable	9.8	608	3000	90	131	Non dimmable	Rail
05.3201.40.DA	Magic Stick 100 Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Rail
05.3201.40.1V	Magic Stick 100 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10 V	Rail
05.3201.40	Magic Stick 100 Non Dimmable	9.8	608	3000	90	131	Non dimmable	Rail
05.3201.14.DA	Magic Stick 100 Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Rail
05.3201.14.1V	Magic Stick 100 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10 V	Rail
05.3201.14	Magic Stick 100 Non Dimmable	9.8	608	3000	90	131	Non dimmable	Rail
05.3200.ES.DA	Magic Stick 100 Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Rail
05.3200.ES.1V	Magic Stick 100 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10 V	Rail
05.3200.ES	Magic Stick 100 Non Dimmable	9.8	587	2700	90	131	Non dimmable	Rail
05.3200.ER.DA	Magic Stick 100 Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Rail
05.3200.ER.1V	Magic Stick 100 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10 V	Rail
05.3200.ER	Magic Stick 100 Non Dimmable	9.8	587	2700	90	131	Non dimmable	Rail
05.3200.40.DA	Magic Stick 100 Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Rail
05.3200.40.1V	Magic Stick 100 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10 V	Rail
05.3200.40	Magic Stick 100 Non Dimmable	9.8	587	2700	90	131	Non dimmable	Rail
05.3200.14.DA	Magic Stick 100 Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Rail
05.3200.14.1V	Magic Stick 100 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10 V	Rail
05.3200.14	Magic Stick 100 Non Dimmable	9.8	587	2700	90	131	Non dimmable	Rail
