Light Shadow Trim

Designed by FLOS Architectural

Recessed integrated luminaire. Remote power supply included. Pre-installation frame not required.

Download Documentation

Product highlight

The revolution in low glare lighting

Compact size program designed to avoid glare featuring a variety of optics, sizes and finishes.

Discover the Story

Luminaires

(776)
Orientation
Optical type
Power (W)
System flux (lm)
CCT (K)
IP Rating
Certifications
Color
Black
Black/Black
Black/Bronze
Black/Steel
Black/White
White
White/Black
White/Bronze
White/Steel
White/White

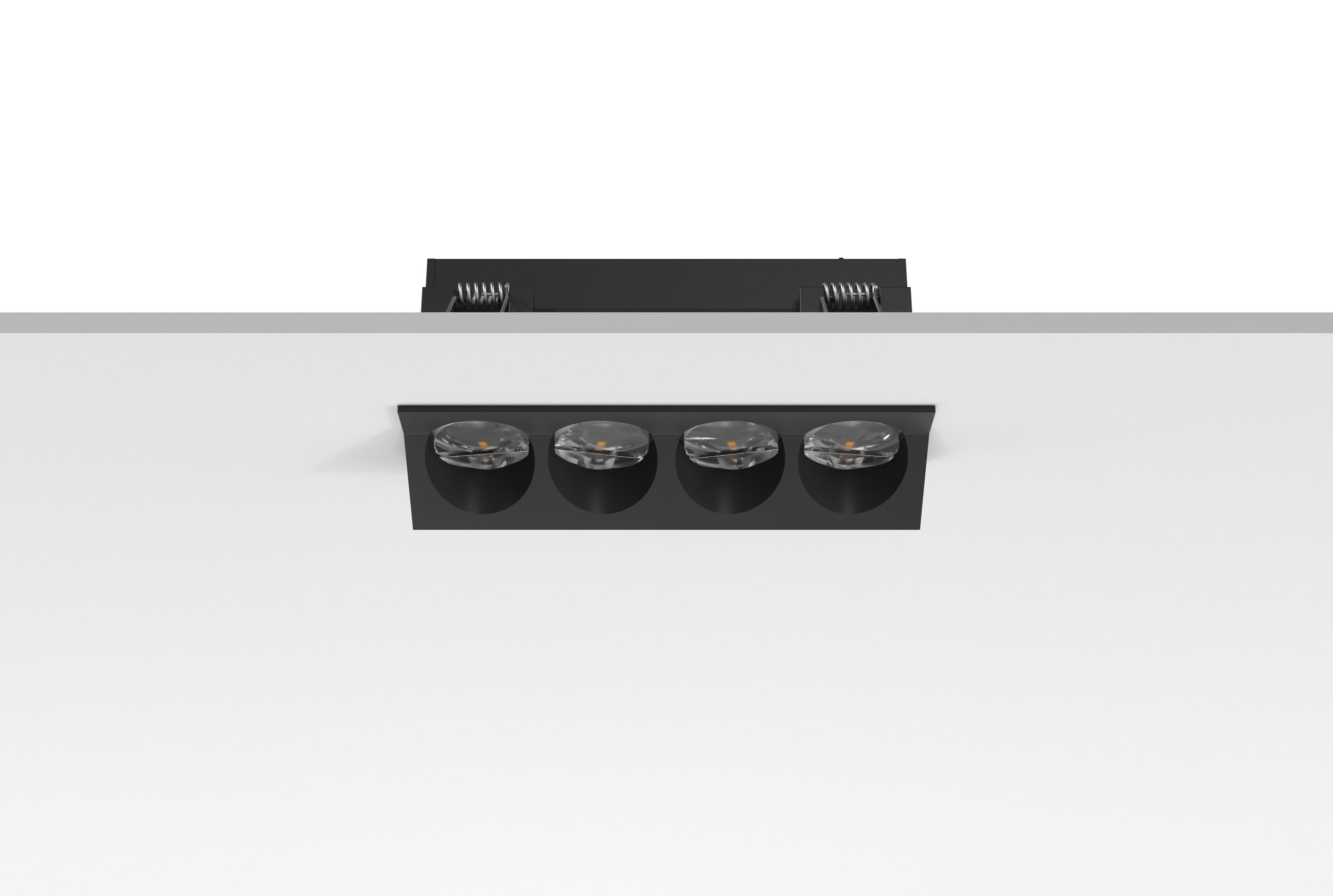

Light Shadow Wall Washer Trim
8 items
Collapse
CodeNamePower (W)System flux (lm)CCT (K)CRI>Beam angle (º)Dimming TypeMounting
03.9901.40CUQ
Light Shadow Wall Washer Trim 4 Spots - Non IC
10.8
873
2700
90
24
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9901.40C90
Light Shadow Wall Washer Trim 4 Spots - Airtight IC Rated
10.8
873
2700
90
24
-
Ceiling recessed
03.9901.14CUQ
Light Shadow Wall Washer Trim 4 Spots - Non IC
10.8
801
2700
90
24
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9901.14C90
Light Shadow Wall Washer Trim 4 Spots - Airtight IC Rated
10.8
801
2700
90
24
-
Ceiling recessed
03.9900.40CUQ
Light Shadow Wall Washer Trim 4 Spots - Non IC
10.8
945
3000
90
24
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9900.40C90
Light Shadow Wall Washer Trim 4 Spots - Airtight IC Rated
10.8
945
3000
90
24
-
Ceiling recessed
03.9900.14CUQ
Light Shadow Wall Washer Trim 4 Spots - Non IC
10.8
872
3000
90
24
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9900.14C90
Light Shadow Wall Washer Trim 4 Spots - Airtight IC Rated
10.8
872
3000
90
24
-
Ceiling recessed
Light Shadow Fixed Trim
384 items
Collapse
CodeNamePower (W)System flux (lm)CCT (K)CRI>Beam angle (º)Dimming TypeMounting
05.1337.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
34
3168
3000
90
46
Dimmable 1-10V
Ceiling recessed
05.1337.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
34
3168
3000
90
46
Dimmable 1-10V
Ceiling recessed
05.1336.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
34
3190
3000
90
45
Dimmable 1-10V
Ceiling recessed
05.1336.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
34
3190
3000
90
45
Dimmable 1-10V
Ceiling recessed
05.1332.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
34
2969
2700
90
46
Dimmable 1-10V
Ceiling recessed
05.1332.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
34
2969
2700
90
46
Dimmable 1-10V
Ceiling recessed
05.1331.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
34
2990
2700
90
45
Dimmable 1-10V
Ceiling recessed
05.1331.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
34
2990
2700
90
45
Dimmable 1-10V
Ceiling recessed
05.1327.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
34
3193
3000
90
29
Dimmable 1-10V
Ceiling recessed
05.1327.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
34
3193
3000
90
29
Dimmable 1-10V
Ceiling recessed
05.1326.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
34
3238
3000
90
29
Dimmable 1-10V
Ceiling recessed
05.1326.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
34
3238
3000
90
29
Dimmable 1-10V
Ceiling recessed
05.1322.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
34
2992
2700
90
29
Dimmable 1-10V
Ceiling recessed
05.1322.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
34
2992
2700
90
29
Dimmable 1-10V
Ceiling recessed
05.1321.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
34
3035
2700
90
29
Dimmable 1-10V
Ceiling recessed
05.1321.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
34
3035
2700
90
29
Dimmable 1-10V
Ceiling recessed
05.1317.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
34
3273
3000
90
23
Dimmable 1-10V
Ceiling recessed
05.1317.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
34
3273
3000
90
23
Dimmable 1-10V
Ceiling recessed
05.1316.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
34
3300
3000
90
23
Dimmable 1-10V
Ceiling recessed
05.1316.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
34
3300
3000
90
23
Dimmable 1-10V
Ceiling recessed
05.1312.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
34
3067
2700
90
23
Dimmable 1-10V
Ceiling recessed
05.1312.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
34
3067
2700
90
23
Dimmable 1-10V
Ceiling recessed
05.1311.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
34
3093
2700
90
23
Dimmable 1-10V
Ceiling recessed
05.1311.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
34
3093
2700
90
23
Dimmable 1-10V
Ceiling recessed
05.1307.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
34
3332
3000
90
11
Dimmable 1-10V
Ceiling recessed
05.1307.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
34
3332
3000
90
11
Dimmable 1-10V
Ceiling recessed
05.1306.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
34
3341
3000
90
11
Dimmable 1-10V
Ceiling recessed
05.1306.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
34
3341
3000
90
11
Dimmable 1-10V
Ceiling recessed
05.1302.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
34
3122
2700
90
11
Dimmable 1-10V
Ceiling recessed
05.1302.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
34
3122
2700
90
11
Dimmable 1-10V
Ceiling recessed
05.1301.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
34
3130
2700
90
11
Dimmable 1-10V
Ceiling recessed
05.1301.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
34
3130
2700
90
11
Dimmable 1-10V
Ceiling recessed
05.1237.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
22
2112
3000
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1237.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
22
2112
3000
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1236.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
22
2127
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1236.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
22
2127
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1232.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
22
1979
2700
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1232.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
22
1979
2700
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1231.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
22
1993
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1231.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
22
1993
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1227.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
22
2129
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1227.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
22
2129
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1226.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
22
2159
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1226.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
22
2159
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1222.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
22
1995
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1222.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
22
1995
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1221.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
22
2023
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1221.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
22
2023
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1217.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
22
2182
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1217.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
22
2182
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1216.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
22
2200
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1216.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
22
2200
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1212.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
22
2045
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1212.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
22
2045
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1211.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
22
2062
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1211.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
22
2062
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1207.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
22
2221
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1207.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
22
2221
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1206.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
22
2227
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1206.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
22
2227
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1202.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
22
2081
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1202.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
22
2081
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1201.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
22
2087
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1201.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
22
2087
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1137.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
1056
3000
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1137.40C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1056
3000
90
46
-
Ceiling recessed
05.1137.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
1056
3000
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1137.14C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1056
3000
90
46
-
Ceiling recessed
05.1136.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
1063
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1136.40C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1063
3000
90
45
-
Ceiling recessed
05.1136.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
1063
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1136.14C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1063
3000
90
45
-
Ceiling recessed
05.1132.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
990
2700
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1132.40C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
990
2700
90
46
-
Ceiling recessed
05.1132.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
990
2700
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1132.14C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
990
2700
90
46
-
Ceiling recessed
05.1131.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
997
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1131.40C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
997
2700
90
45
-
Ceiling recessed
05.1131.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
997
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1131.14C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
997
2700
90
45
-
Ceiling recessed
05.1127.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
1064
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1127.40C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1064
3000
90
29
-
Ceiling recessed
05.1127.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
1064
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1127.14C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1064
3000
90
29
-
Ceiling recessed
05.1126.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
1079
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1126.40C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1079
3000
90
29
-
Ceiling recessed
05.1126.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
1079
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1126.14C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1079
3000
90
29
-
Ceiling recessed
05.1122.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
997
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1122.40C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
997
2700
90
29
-
Ceiling recessed
05.1122.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
997
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1122.14C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
997
2700
90
29
-
Ceiling recessed
05.1121.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
1012
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1121.40C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1012
2700
90
29
-
Ceiling recessed
05.1121.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
1012
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1121.14C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1012
2700
90
29
-
Ceiling recessed
05.1117.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1091
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1117.40C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1091
3000
90
23
-
Ceiling recessed
05.1117.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1091
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1117.14C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1091
3000
90
23
-
Ceiling recessed
05.1116.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1100
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1116.40C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1100
3000
90
23
-
Ceiling recessed
05.1116.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1100
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1116.14C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1100
3000
90
23
-
Ceiling recessed
05.1112.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1022
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1112.40C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1022
2700
90
23
-
Ceiling recessed
05.1112.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1022
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1112.14C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1022
2700
90
23
-
Ceiling recessed
05.1111.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1031
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1111.40C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1031
2700
90
23
-
Ceiling recessed
05.1111.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1031
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1111.14C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1031
2700
90
23
-
Ceiling recessed
05.1107.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1111
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1107.40C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1111
3000
90
11
-
Ceiling recessed
05.1107.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1111
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1107.14C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1111
3000
90
11
-
Ceiling recessed
05.1106.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1114
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1106.40C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1114
3000
90
11
-
Ceiling recessed
05.1106.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1114
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1106.14C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1114
3000
90
11
-
Ceiling recessed
05.1102.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1041
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1102.40C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1041
2700
90
11
-
Ceiling recessed
05.1102.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1041
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1102.14C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1041
2700
90
11
-
Ceiling recessed
05.1101.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1043
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1101.40C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1043
2700
90
11
-
Ceiling recessed
05.1101.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1043
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1101.14C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1043
2700
90
11
-
Ceiling recessed
05.1037.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7.2
528
3000
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1037.40C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
528
3000
90
46
-
Ceiling recessed
05.1037.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7.2
528
3000
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1037.14C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
528
3000
90
46
-
Ceiling recessed
05.1036.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7.2
532
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1036.40C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
532
3000
90
45
-
Ceiling recessed
05.1036.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7.2
532
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1036.14C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
532
3000
90
45
-
Ceiling recessed
05.1032.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7.2
495
2700
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1032.40C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
495
2700
90
46
-
Ceiling recessed
05.1032.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7.2
495
2700
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1032.14C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
495
2700
90
46
-
Ceiling recessed
05.1031.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7.2
498
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1031.40C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
498
2700
90
45
-
Ceiling recessed
05.1031.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7.2
498
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1031.14C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
498
2700
90
45
-
Ceiling recessed
05.1027.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7.2
532
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1027.40C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
532
3000
90
29
-
Ceiling recessed
05.1027.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7.2
532
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1027.14C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
532
3000
90
29
-
Ceiling recessed
05.1026.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7.2
540
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1026.40C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
540
3000
90
29
-
Ceiling recessed
05.1026.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7.2
540
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1026.14C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
540
3000
90
29
-
Ceiling recessed
05.1022.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7.2
499
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1022.40C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
499
2700
90
29
-
Ceiling recessed
05.1022.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7.2
499
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1022.14C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
499
2700
90
29
-
Ceiling recessed
05.1021.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7.2
506
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1021.40C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
506
2700
90
29
-
Ceiling recessed
05.1021.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7.2
506
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1021.14C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
506
2700
90
29
-
Ceiling recessed
05.1017.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7.2
546
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1017.40C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
546
3000
90
23
-
Ceiling recessed
05.1017.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7.2
546
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1017.14C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
546
3000
90
23
-
Ceiling recessed
05.1016.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7.2
550
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1016.40C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
550
3000
90
23
-
Ceiling recessed
05.1016.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7.2
550
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1016.14C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
550
3000
90
23
-
Ceiling recessed
05.1012.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7.2
511
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1012.40C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
511
2700
90
23
-
Ceiling recessed
05.1012.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7.2
511
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1012.14C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
511
2700
90
23
-
Ceiling recessed
05.1011.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7.2
515
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1011.40C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
515
2700
90
23
-
Ceiling recessed
05.1011.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7.2
515
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1011.14C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
515
2700
90
23
-
Ceiling recessed
05.1007.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7.2
555
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1007.40C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
555
3000
90
11
-
Ceiling recessed
05.1007.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7.2
555
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1007.14C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
555
3000
90
11
-
Ceiling recessed
05.1006.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7.2
557
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1006.40C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
557
3000
90
11
-
Ceiling recessed
05.1006.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7.2
557
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1006.14C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
557
3000
90
11
-
Ceiling recessed
05.1002.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7.2
520
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1002.40C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
520
2700
90
11
-
Ceiling recessed
05.1002.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7.2
520
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1002.14C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
520
2700
90
11
-
Ceiling recessed
05.1001.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7.2
522
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1001.40C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
522
2700
90
11
-
Ceiling recessed
05.1001.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7.2
522
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1001.14C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
522
2700
90
11
-
Ceiling recessed
03.9176.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
32.4
3156
3000
90
30
Dimmable 1-10V
Ceiling recessed
03.9176.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
32.4
3156
3000
90
30
Dimmable 1-10V
Ceiling recessed
03.9175.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
32.4
3293
3000
90
29
Dimmable 1-10V
Ceiling recessed
03.9175.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
32.4
3293
3000
90
29
Dimmable 1-10V
Ceiling recessed
03.9171.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
32.4
3286
3000
90
23
Dimmable 1-10V
Ceiling recessed
03.9171.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
32.4
3286
3000
90
23
Dimmable 1-10V
Ceiling recessed
03.9170.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
32.4
3265
3000
90
23
Dimmable 1-10V
Ceiling recessed
03.9170.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
32.4
3265
3000
90
23
Dimmable 1-10V
Ceiling recessed
03.9166.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
32.4
2958
2700
90
30
Dimmable 1-10V
Ceiling recessed
03.9166.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
32.4
2958
2700
90
30
Dimmable 1-10V
Ceiling recessed
03.9165.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
32.4
3086
2700
90
29
Dimmable 1-10V
Ceiling recessed
03.9165.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Flood - Non IC
32.4
3086
2700
90
29
Dimmable 1-10V
Ceiling recessed
03.9161.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
32.4
3080
2700
90
23
Dimmable 1-10V
Ceiling recessed
03.9161.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
32.4
3080
2700
90
23
Dimmable 1-10V
Ceiling recessed
03.9160.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
32.4
3060
2700
90
23
Dimmable 1-10V
Ceiling recessed
03.9160.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Medium - Non IC
32.4
3060
2700
90
23
Dimmable 1-10V
Ceiling recessed
03.9156.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
21.6
2104
3000
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9156.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
21.6
2104
3000
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9155.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
21.6
2195
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9155.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
21.6
2195
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9151.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
21.6
2191
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9151.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
21.6
2191
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9150.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
21.6
2177
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9150.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
21.6
2177
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9146.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
21.6
1972
2700
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9146.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
21.6
1972
2700
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9145.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
21.6
2057
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9145.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Flood - Non IC
21.6
2057
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9141.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
21.6
2053
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9141.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
21.6
2053
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9140.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
21.6
2040
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9140.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Medium - Non IC
21.6
2040
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9136.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
1052
3000
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9136.40C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1052
3000
90
30
-
Ceiling recessed
03.9136.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
1052
3000
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9136.14C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1052
3000
90
30
-
Ceiling recessed
03.9135.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
1098
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9135.40C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1098
3000
90
29
-
Ceiling recessed
03.9135.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
1098
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9135.14C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1098
3000
90
29
-
Ceiling recessed
03.9131.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1095
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9131.40C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1095
3000
90
23
-
Ceiling recessed
03.9131.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1095
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9131.14C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1095
3000
90
23
-
Ceiling recessed
03.9130.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1088
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9130.40C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1088
3000
90
23
-
Ceiling recessed
03.9130.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1088
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9130.14C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1088
3000
90
23
-
Ceiling recessed
03.9126.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
986
2700
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9126.40C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
986
2700
90
30
-
Ceiling recessed
03.9126.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
986
2700
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9126.14C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
986
2700
90
30
-
Ceiling recessed
03.9125.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
1029
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9125.40C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1029
2700
90
29
-
Ceiling recessed
03.9125.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Flood - Non IC
10.8
1029
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9125.14C90
Light Shadow Fixed Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1029
2700
90
29
-
Ceiling recessed
03.9121.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1027
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9121.40C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1027
2700
90
23
-
Ceiling recessed
03.9121.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1027
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9121.14C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1027
2700
90
23
-
Ceiling recessed
03.9120.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1020
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9120.40C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1020
2700
90
23
-
Ceiling recessed
03.9120.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Medium - Non IC
10.8
1020
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9120.14C90
Light Shadow Fixed Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1020
2700
90
23
-
Ceiling recessed
03.9116.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7
526
3000
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9116.40C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7
526
3000
90
30
-
Ceiling recessed
03.9116.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7
526
3000
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9116.14C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7
526
3000
90
30
-
Ceiling recessed
03.9115.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7
549
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9115.40C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7
549
3000
90
29
-
Ceiling recessed
03.9115.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7
549
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9115.14C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7
549
3000
90
29
-
Ceiling recessed
03.9111.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7
548
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9111.40C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7
548
3000
90
23
-
Ceiling recessed
03.9111.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7
548
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9111.14C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7
548
3000
90
23
-
Ceiling recessed
03.9110.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7
544
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9110.40C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7
544
3000
90
23
-
Ceiling recessed
03.9110.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7
544
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9110.14C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7
544
3000
90
23
-
Ceiling recessed
03.9106.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7
493
2700
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9106.40C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7
493
2700
90
30
-
Ceiling recessed
03.9106.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7
493
2700
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9106.14C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7
493
2700
90
30
-
Ceiling recessed
03.9105.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7
514
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9105.40C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7
514
2700
90
29
-
Ceiling recessed
03.9105.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Flood - Non IC
7
514
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9105.14C90
Light Shadow Fixed Trim 2 Spots Optic Flood - Airtight IC Rated
7
514
2700
90
29
-
Ceiling recessed
03.9101.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7
513
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9101.40C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7
513
2700
90
23
-
Ceiling recessed
03.9101.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7
513
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9101.14C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7
513
2700
90
23
-
Ceiling recessed
03.9100.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7
510
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9100.40C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7
510
2700
90
23
-
Ceiling recessed
03.9100.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Medium - Non IC
7
510
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9100.14C90
Light Shadow Fixed Trim 2 Spots Optic Medium - Airtight IC Rated
7
510
2700
90
23
-
Ceiling recessed
03.8849.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
32.4
3238
3000
90
11
Dimmable 1-10V
Ceiling recessed
03.8849.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
32.4
3238
3000
90
11
Dimmable 1-10V
Ceiling recessed
03.8848.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
32.4
3394
3000
90
12
Dimmable 1-10V
Ceiling recessed
03.8848.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
32.4
3394
3000
90
12
Dimmable 1-10V
Ceiling recessed
03.8845.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
32.4
3034
2700
90
11
Dimmable 1-10V
Ceiling recessed
03.8845.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
32.4
3034
2700
90
11
Dimmable 1-10V
Ceiling recessed
03.8844.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
32.4
3180
2700
90
12
Dimmable 1-10V
Ceiling recessed
03.8844.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Spot - Non IC
32.4
3180
2700
90
12
Dimmable 1-10V
Ceiling recessed
03.8841.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
21.6
2159
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8841.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
21.6
2159
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8840.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
21.6
2262
3000
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8840.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
21.6
2262
3000
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8837.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
21.6
2023
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8837.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
21.6
2023
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8836.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
21.6
2120
2700
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8836.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Spot - Non IC
21.6
2120
2700
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8833.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1079
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8833.40C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1079
3000
90
11
-
Ceiling recessed
03.8833.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1079
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8833.14C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1079
3000
90
11
-
Ceiling recessed
03.8832.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1131
3000
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8832.40C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1131
3000
90
12
-
Ceiling recessed
03.8832.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1131
3000
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8832.14C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1131
3000
90
12
-
Ceiling recessed
03.8829.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1011
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8829.40C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1011
2700
90
11
-
Ceiling recessed
03.8829.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1011
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8829.14C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1011
2700
90
11
-
Ceiling recessed
03.8828.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1060
2700
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8828.40C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1060
2700
90
12
-
Ceiling recessed
03.8828.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Spot - Non IC
10.8
1060
2700
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8828.14C90
Light Shadow Fixed Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1060
2700
90
12
-
Ceiling recessed
03.8825.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7
540
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8825.40C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7
540
3000
90
11
-
Ceiling recessed
03.8825.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7
540
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8825.14C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7
540
3000
90
11
-
Ceiling recessed
03.8824.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7
566
3000
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8824.40C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7
566
3000
90
12
-
Ceiling recessed
03.8824.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7
566
3000
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8824.14C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7
566
3000
90
12
-
Ceiling recessed
03.8821.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7
506
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8821.40C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7
506
2700
90
11
-
Ceiling recessed
03.8821.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7
506
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8821.14C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7
506
2700
90
11
-
Ceiling recessed
03.8820.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7
530
2700
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8820.40C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7
530
2700
90
12
-
Ceiling recessed
03.8820.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Spot - Non IC
7
530
2700
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8820.14C90
Light Shadow Fixed Trim 2 Spots Optic Spot - Airtight IC Rated
7
530
2700
90
12
-
Ceiling recessed
03.8329.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
32.4
3144
3000
90
44
Dimmable 1-10V
Ceiling recessed
03.8329.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
32.4
3144
3000
90
44
Dimmable 1-10V
Ceiling recessed
03.8328.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
32.4
3272
3000
90
45
Dimmable 1-10V
Ceiling recessed
03.8328.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
32.4
3272
3000
90
45
Dimmable 1-10V
Ceiling recessed
03.8325.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
32.4
2947
2700
90
44
Dimmable 1-10V
Ceiling recessed
03.8325.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
32.4
2947
2700
90
44
Dimmable 1-10V
Ceiling recessed
03.8324.40CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
32.4
3066
2700
90
45
Dimmable 1-10V
Ceiling recessed
03.8324.14CUQ
Light Shadow Fixed Trim 12 Spots Optic Wide Flood - Non IC
32.4
3066
2700
90
45
Dimmable 1-10V
Ceiling recessed
03.8321.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
21.6
2096
3000
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8321.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
21.6
2096
3000
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8320.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
21.6
2181
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8320.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
21.6
2181
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8317.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
21.6
1964
2700
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8317.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
21.6
1964
2700
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8316.40CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
21.6
2044
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8316.14CUQ
Light Shadow Fixed Trim 8 Spots Optic Wide Flood - Non IC
21.6
2044
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8313.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
1048
3000
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8313.40C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1048
3000
90
44
-
Ceiling recessed
03.8313.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
1048
3000
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8313.14C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1048
3000
90
44
-
Ceiling recessed
03.8312.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
1091
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8312.40C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1091
3000
90
45
-
Ceiling recessed
03.8312.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
1091
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8312.14C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1091
3000
90
45
-
Ceiling recessed
03.8309.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
982
2700
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8309.40C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
982
2700
90
44
-
Ceiling recessed
03.8309.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
982
2700
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8309.14C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
982
2700
90
44
-
Ceiling recessed
03.8308.40CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
1022
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8308.40C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1022
2700
90
45
-
Ceiling recessed
03.8308.14CUQ
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Non IC
10.8
1022
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8308.14C90
Light Shadow Fixed Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1022
2700
90
45
-
Ceiling recessed
03.8305.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7
524
3000
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8305.40C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
524
3000
90
44
-
Ceiling recessed
03.8305.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7
524
3000
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8305.14C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
524
3000
90
44
-
Ceiling recessed
03.8304.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7
545
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8304.40C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
545
3000
90
45
-
Ceiling recessed
03.8304.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7
545
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8304.14C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
545
3000
90
45
-
Ceiling recessed
03.8301.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7
491
2700
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8301.40C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
491
2700
90
44
-
Ceiling recessed
03.8301.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7
491
2700
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8301.14C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
491
2700
90
44
-
Ceiling recessed
03.8300.40CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7
511
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8300.40C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
511
2700
90
45
-
Ceiling recessed
03.8300.14CUQ
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Non IC
7
511
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8300.14C90
Light Shadow Fixed Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
511
2700
90
45
-
Ceiling recessed
Light Shadow Adjustable Trim
384 items
Collapse
CodeNamePower (W)System flux (lm)CCT (K)CRI>Beam angle (º)Dimming TypeMounting
05.1737.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
3168
3000
90
46
Dimmable 1-10V
Ceiling recessed
05.1737.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
3168
3000
90
46
Dimmable 1-10V
Ceiling recessed
05.1736.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
3190
3000
90
45
Dimmable 1-10V
Ceiling recessed
05.1736.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
3190
3000
90
45
Dimmable 1-10V
Ceiling recessed
05.1732.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
2969
2700
90
46
Dimmable 1-10V
Ceiling recessed
05.1732.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
2969
2700
90
46
Dimmable 1-10V
Ceiling recessed
05.1731.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
2990
2700
90
45
Dimmable 1-10V
Ceiling recessed
05.1731.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
2990
2700
90
45
Dimmable 1-10V
Ceiling recessed
05.1727.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
3193
3000
90
29
Dimmable 1-10V
Ceiling recessed
05.1727.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
3193
3000
90
29
Dimmable 1-10V
Ceiling recessed
05.1726.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
3238
3000
90
29
Dimmable 1-10V
Ceiling recessed
05.1726.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
3238
3000
90
29
Dimmable 1-10V
Ceiling recessed
05.1722.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
2992
2700
90
29
Dimmable 1-10V
Ceiling recessed
05.1722.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
2992
2700
90
29
Dimmable 1-10V
Ceiling recessed
05.1721.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
3035
2700
90
29
Dimmable 1-10V
Ceiling recessed
05.1721.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
3035
2700
90
29
Dimmable 1-10V
Ceiling recessed
05.1717.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3273
3000
90
23
Dimmable 1-10V
Ceiling recessed
05.1717.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3273
3000
90
23
Dimmable 1-10V
Ceiling recessed
05.1716.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3300
3000
90
23
Dimmable 1-10V
Ceiling recessed
05.1716.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3300
3000
90
23
Dimmable 1-10V
Ceiling recessed
05.1712.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3067
2700
90
23
Dimmable 1-10V
Ceiling recessed
05.1712.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3067
2700
90
23
Dimmable 1-10V
Ceiling recessed
05.1711.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3093
2700
90
23
Dimmable 1-10V
Ceiling recessed
05.1711.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3093
2700
90
23
Dimmable 1-10V
Ceiling recessed
05.1707.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3332
3000
90
11
Dimmable 1-10V
Ceiling recessed
05.1707.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3332
3000
90
11
Dimmable 1-10V
Ceiling recessed
05.1706.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3341
3000
90
11
Dimmable 1-10V
Ceiling recessed
05.1706.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3341
3000
90
11
Dimmable 1-10V
Ceiling recessed
05.1702.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3122
2700
90
11
Dimmable 1-10V
Ceiling recessed
05.1702.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3122
2700
90
11
Dimmable 1-10V
Ceiling recessed
05.1701.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3130
2700
90
11
Dimmable 1-10V
Ceiling recessed
05.1701.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3130
2700
90
11
Dimmable 1-10V
Ceiling recessed
05.1637.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
2112
3000
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1637.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
2112
3000
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1636.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
2127
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1636.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
2127
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1632.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
1979
2700
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1632.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
1979
2700
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1631.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
1993
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1631.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
1993
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1627.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
2129
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1627.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
2129
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1626.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
2159
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1626.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
2159
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1622.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
1995
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1622.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
1995
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1621.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
2023
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1621.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
2023
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1617.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2182
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1617.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2182
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1616.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2200
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1616.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2200
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1612.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2045
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1612.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2045
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1611.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2062
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1611.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2062
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1607.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2221
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1607.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2221
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1606.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2227
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1606.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2227
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1602.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2081
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1602.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2081
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1601.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2087
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1601.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2087
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1537.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
1056
3000
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1537.40C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1056
3000
90
46
-
Ceiling recessed
05.1537.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
1056
3000
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1537.14C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1056
3000
90
46
-
Ceiling recessed
05.1536.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
1063
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1536.40C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1063
3000
90
45
-
Ceiling recessed
05.1536.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
1063
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1536.14C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1063
3000
90
45
-
Ceiling recessed
05.1532.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
990
2700
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1532.40C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
990
2700
90
46
-
Ceiling recessed
05.1532.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
990
2700
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1532.14C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
990
2700
90
46
-
Ceiling recessed
05.1531.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
997
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1531.40C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
997
2700
90
45
-
Ceiling recessed
05.1531.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
997
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1531.14C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
997
2700
90
45
-
Ceiling recessed
05.1527.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
1064
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1527.40C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1064
3000
90
29
-
Ceiling recessed
05.1527.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
1064
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1527.14C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1064
3000
90
29
-
Ceiling recessed
05.1526.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
1079
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1526.40C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1079
3000
90
29
-
Ceiling recessed
05.1526.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
1079
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1526.14C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1079
3000
90
29
-
Ceiling recessed
05.1522.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
997
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1522.40C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
997
2700
90
29
-
Ceiling recessed
05.1522.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
997
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1522.14C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
997
2700
90
29
-
Ceiling recessed
05.1521.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
1012
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1521.40C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1012
2700
90
29
-
Ceiling recessed
05.1521.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
1012
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1521.14C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1012
2700
90
29
-
Ceiling recessed
05.1517.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1091
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1517.40C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1091
3000
90
23
-
Ceiling recessed
05.1517.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1091
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1517.14C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1091
3000
90
23
-
Ceiling recessed
05.1516.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1100
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1516.40C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1100
3000
90
23
-
Ceiling recessed
05.1516.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1100
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1516.14C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1100
3000
90
23
-
Ceiling recessed
05.1512.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1022
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1512.40C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1022
2700
90
23
-
Ceiling recessed
05.1512.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1022
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1512.14C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1022
2700
90
23
-
Ceiling recessed
05.1511.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1031
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1511.40C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1031
2700
90
23
-
Ceiling recessed
05.1511.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1031
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1511.14C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1031
2700
90
23
-
Ceiling recessed
05.1507.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1111
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1507.40C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1111
3000
90
11
-
Ceiling recessed
05.1507.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1111
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1507.14C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1111
3000
90
11
-
Ceiling recessed
05.1506.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1114
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1506.40C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1114
3000
90
11
-
Ceiling recessed
05.1506.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1114
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1506.14C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1114
3000
90
11
-
Ceiling recessed
05.1502.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1041
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1502.40C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1041
2700
90
11
-
Ceiling recessed
05.1502.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1041
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1502.14C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1041
2700
90
11
-
Ceiling recessed
05.1501.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1043
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1501.40C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1043
2700
90
11
-
Ceiling recessed
05.1501.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1043
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1501.14C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1043
2700
90
11
-
Ceiling recessed
05.1437.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7.2
528
3000
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1437.40C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
528
3000
90
46
-
Ceiling recessed
05.1437.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7.2
528
3000
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1437.14C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
528
3000
90
46
-
Ceiling recessed
05.1436.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7.2
532
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1436.40C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
532
3000
90
45
-
Ceiling recessed
05.1436.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7.2
532
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1436.14C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
532
3000
90
45
-
Ceiling recessed
05.1432.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7.2
495
2700
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1432.40C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
495
2700
90
46
-
Ceiling recessed
05.1432.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7.2
495
2700
90
46
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1432.14C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
495
2700
90
46
-
Ceiling recessed
05.1431.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7.2
498
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1431.40C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
498
2700
90
45
-
Ceiling recessed
05.1431.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7.2
498
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1431.14C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7.2
498
2700
90
45
-
Ceiling recessed
05.1427.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7.2
532
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1427.40C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
532
2700
90
29
-
Ceiling recessed
05.1427.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7.2
532
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1427.14C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
532
2700
90
29
-
Ceiling recessed
05.1426.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7.2
540
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1426.40C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
540
2700
90
29
-
Ceiling recessed
05.1426.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7.2
540
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1426.14C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
540
2700
90
29
-
Ceiling recessed
05.1422.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7.2
499
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1422.40C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
499
2700
90
29
-
Ceiling recessed
05.1422.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7.2
499
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1422.14C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
499
2700
90
29
-
Ceiling recessed
05.1421.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7.2
506
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1421.40C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
506
2700
90
29
-
Ceiling recessed
05.1421.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7.2
506
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1421.14C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7.2
506
2700
90
29
-
Ceiling recessed
05.1417.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7.2
546
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1417.40C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
546
2700
90
23
-
Ceiling recessed
05.1417.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7.2
546
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1417.14C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
546
2700
90
23
-
Ceiling recessed
05.1416.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7.2
550
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1416.40C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
550
2700
90
23
-
Ceiling recessed
05.1416.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7.2
550
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1416.14C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
550
2700
90
23
-
Ceiling recessed
05.1412.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7.2
511
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1412.40C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
511
2700
90
23
-
Ceiling recessed
05.1412.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7.2
511
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1412.14C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
511
2700
90
23
-
Ceiling recessed
05.1411.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7.2
515
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1411.40C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
515
2700
90
23
-
Ceiling recessed
05.1411.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7.2
515
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1411.14C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7.2
515
2700
90
23
-
Ceiling recessed
05.1407.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7.2
555
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1407.40C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
555
2700
90
11
-
Ceiling recessed
05.1407.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7.2
555
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1407.14C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
555
2700
90
11
-
Ceiling recessed
05.1406.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7.2
557
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1406.40C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
557
2700
90
11
-
Ceiling recessed
05.1406.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7.2
557
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1406.14C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
557
2700
90
11
-
Ceiling recessed
05.1402.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7.2
520
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1402.40C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
520
2700
90
11
-
Ceiling recessed
05.1402.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7.2
520
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1402.14C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
520
2700
90
11
-
Ceiling recessed
05.1401.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7.2
522
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1401.40C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
522
2700
90
11
-
Ceiling recessed
05.1401.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7.2
522
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
05.1401.14C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7.2
522
2700
90
11
-
Ceiling recessed
03.9376.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
3156
3000
90
30
Dimmable 1-10V
Ceiling recessed
03.9376.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
3156
3000
90
30
Dimmable 1-10V
Ceiling recessed
03.9375.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
3293
3000
90
29
Dimmable 1-10V
Ceiling recessed
03.9375.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
3293
3000
90
29
Dimmable 1-10V
Ceiling recessed
03.9371.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3286
3000
90
23
Dimmable 1-10V
Ceiling recessed
03.9371.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3286
3000
90
23
Dimmable 1-10V
Ceiling recessed
03.9370.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3265
3000
90
23
Dimmable 1-10V
Ceiling recessed
03.9370.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3265
3000
90
23
Dimmable 1-10V
Ceiling recessed
03.9366.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
2958
2700
90
30
Dimmable 1-10V
Ceiling recessed
03.9366.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
2958
2700
90
30
Dimmable 1-10V
Ceiling recessed
03.9365.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
3086
2700
90
29
Dimmable 1-10V
Ceiling recessed
03.9365.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Flood - Non IC
32.4
3086
2700
90
29
Dimmable 1-10V
Ceiling recessed
03.9361.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3080
2700
90
23
Dimmable 1-10V
Ceiling recessed
03.9361.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3080
2700
90
23
Dimmable 1-10V
Ceiling recessed
03.9360.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3060
2700
90
23
Dimmable 1-10V
Ceiling recessed
03.9360.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Medium - Non IC
32.4
3060
2700
90
23
Dimmable 1-10V
Ceiling recessed
03.9356.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
2104
3000
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9356.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
2104
3000
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9355.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
2195
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9355.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
2195
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9351.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2191
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9351.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2191
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9350.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2177
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9350.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2177
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9346.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
1972
2700
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9346.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
1972
2700
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9345.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
2057
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9345.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Flood - Non IC
21.6
2057
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9341.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2053
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9341.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2053
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9340.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2040
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9340.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Medium - Non IC
21.6
2040
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9336.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
1052
3000
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9336.40C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1052
3000
90
30
-
Ceiling recessed
03.9336.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
1052
3000
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9336.14C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1052
3000
90
30
-
Ceiling recessed
03.9335.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
1098
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9335.40C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1098
3000
90
29
-
Ceiling recessed
03.9335.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
1098
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9335.14C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1098
3000
90
29
-
Ceiling recessed
03.9331.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1095
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9331.40C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1095
3000
90
23
-
Ceiling recessed
03.9331.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1095
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9331.14C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1095
3000
90
23
-
Ceiling recessed
03.9330.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1088
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9330.40C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1088
3000
90
23
-
Ceiling recessed
03.9330.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1088
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9330.14C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1088
3000
90
23
-
Ceiling recessed
03.9326.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
986
2700
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9326.40C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
986
2700
90
30
-
Ceiling recessed
03.9326.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
986
2700
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9326.14C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
986
2700
90
30
-
Ceiling recessed
03.9325.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
1029
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9325.40C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1029
2700
90
29
-
Ceiling recessed
03.9325.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Flood - Non IC
10.8
1029
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9325.14C90
Light Shadow Adjustable Trim 4 Spots Optic Flood - Airtight IC Rated
10.8
1029
2700
90
29
-
Ceiling recessed
03.9321.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1027
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9321.40C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1027
2700
90
23
-
Ceiling recessed
03.9321.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1027
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9321.14C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1027
2700
90
23
-
Ceiling recessed
03.9320.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1020
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9320.40C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1020
2700
90
23
-
Ceiling recessed
03.9320.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Medium - Non IC
10.8
1020
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9320.14C90
Light Shadow Adjustable Trim 4 Spots Optic Medium - Airtight IC Rated
10.8
1020
2700
90
23
-
Ceiling recessed
03.9316.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7
526
3000
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9316.40C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7
526
3000
90
30
-
Ceiling recessed
03.9316.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7
526
3000
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9316.14C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7
526
3000
90
30
-
Ceiling recessed
03.9315.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7
549
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9315.40C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7
549
3000
90
29
-
Ceiling recessed
03.9315.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7
549
3000
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9315.14C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7
549
3000
90
29
-
Ceiling recessed
03.9311.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7
548
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9311.40C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7
548
3000
90
23
-
Ceiling recessed
03.9311.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7
548
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9311.14C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7
548
3000
90
23
-
Ceiling recessed
03.9310.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7
544
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9310.40C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7
544
3000
90
23
-
Ceiling recessed
03.9310.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7
544
3000
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9310.14C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7
544
3000
90
23
-
Ceiling recessed
03.9306.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7
493
2700
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9306.40C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7
493
2700
90
30
-
Ceiling recessed
03.9306.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7
493
2700
90
30
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9306.14C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7
493
2700
90
30
-
Ceiling recessed
03.9305.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7
514
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9305.40C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7
514
2700
90
29
-
Ceiling recessed
03.9305.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Flood - Non IC
7
514
2700
90
29
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9305.14C90
Light Shadow Adjustable Trim 2 Spots Optic Flood - Airtight IC Rated
7
514
2700
90
29
-
Ceiling recessed
03.9301.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7
513
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9301.40C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7
513
2700
90
23
-
Ceiling recessed
03.9301.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7
513
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9301.14C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7
513
2700
90
23
-
Ceiling recessed
03.9300.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7
510
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9300.40C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7
510
2700
90
23
-
Ceiling recessed
03.9300.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Medium - Non IC
7
510
2700
90
23
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.9300.14C90
Light Shadow Adjustable Trim 2 Spots Optic Medium - Airtight IC Rated
7
510
2700
90
23
-
Ceiling recessed
03.8913.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3238
3000
90
11
Dimmable 1-10V
Ceiling recessed
03.8913.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3238
3000
90
11
Dimmable 1-10V
Ceiling recessed
03.8912.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3394
3000
90
12
Dimmable 1-10V
Ceiling recessed
03.8912.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3394
3000
90
12
Dimmable 1-10V
Ceiling recessed
03.8909.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3034
2700
90
11
Dimmable 1-10V
Ceiling recessed
03.8909.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3034
2700
90
11
Dimmable 1-10V
Ceiling recessed
03.8908.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3180
2700
90
12
Dimmable 1-10V
Ceiling recessed
03.8908.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Spot - Non IC
32.4
3180
2700
90
12
Dimmable 1-10V
Ceiling recessed
03.8905.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2159
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8905.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2159
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8904.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2262
3000
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8904.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2262
3000
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8901.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2023
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8901.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2023
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8900.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2120
2700
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8900.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Spot - Non IC
21.6
2120
2700
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8897.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1079
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8897.40C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1079
3000
90
11
-
Ceiling recessed
03.8897.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1079
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8897.14C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1079
3000
90
11
-
Ceiling recessed
03.8896.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1131
3000
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8896.40C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1131
3000
90
12
-
Ceiling recessed
03.8896.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1131
3000
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8896.14C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1131
3000
90
12
-
Ceiling recessed
03.8893.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1011
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8893.40C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1011
2700
90
11
-
Ceiling recessed
03.8893.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1011
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8893.14C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1011
2700
90
11
-
Ceiling recessed
03.8892.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1060
2700
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8892.40C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1060
2700
90
12
-
Ceiling recessed
03.8892.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Spot - Non IC
10.8
1060
2700
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8892.14C90
Light Shadow Adjustable Trim 4 Spots Optic Spot - Airtight IC Rated
10.8
1060
2700
90
12
-
Ceiling recessed
03.8889.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7
540
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8889.40C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7
540
3000
90
11
-
Ceiling recessed
03.8889.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7
540
3000
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8889.14C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7
540
3000
90
11
-
Ceiling recessed
03.8888.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7
566
3000
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8888.40C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7
566
3000
90
12
-
Ceiling recessed
03.8888.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7
566
3000
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8888.14C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7
566
3000
90
12
-
Ceiling recessed
03.8885.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7
506
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8885.40C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7
506
2700
90
11
-
Ceiling recessed
03.8885.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7
506
2700
90
11
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8885.14C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7
506
2700
90
11
-
Ceiling recessed
03.8884.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7
530
2700
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8884.40C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7
530
2700
90
12
-
Ceiling recessed
03.8884.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Spot - Non IC
7
530
2700
90
12
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.8884.14C90
Light Shadow Adjustable Trim 2 Spots Optic Spot - Airtight IC Rated
7
530
2700
90
12
-
Ceiling recessed
03.7329.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
3144
3000
90
44
Dimmable 1-10V
Ceiling recessed
03.7329.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
3144
3000
90
44
Dimmable 1-10V
Ceiling recessed
03.7328.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
3272
3000
90
45
Dimmable 1-10V
Ceiling recessed
03.7328.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
3272
3000
90
45
Dimmable 1-10V
Ceiling recessed
03.7325.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
2947
2700
90
44
Dimmable 1-10V
Ceiling recessed
03.7325.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
2947
2700
90
44
Dimmable 1-10V
Ceiling recessed
03.7324.40CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
3066
2700
90
45
Dimmable 1-10V
Ceiling recessed
03.7324.14CUQ
Light Shadow Adjustable Trim 12 Spots Optic Wide Flood - Non IC
32.4
3066
2700
90
45
Dimmable 1-10V
Ceiling recessed
03.7321.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
2096
3000
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7321.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
2096
3000
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7320.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
2181
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7320.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
2181
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7317.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
1964
2700
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7317.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
1964
2700
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7316.40CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
2044
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7316.14CUQ
Light Shadow Adjustable Trim 8 Spots Optic Wide Flood - Non IC
21.6
2044
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7313.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
1048
3000
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7313.40C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1048
3000
90
44
-
Ceiling recessed
03.7313.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
1048
3000
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7313.14C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1048
3000
90
44
-
Ceiling recessed
03.7312.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
1091
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7312.40C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1091
3000
90
45
-
Ceiling recessed
03.7312.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
1091
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7312.14C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1091
3000
90
45
-
Ceiling recessed
03.7309.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
982
2700
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7309.40C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
982
2700
90
44
-
Ceiling recessed
03.7309.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
982
2700
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7309.14C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
982
2700
90
44
-
Ceiling recessed
03.7308.40CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
1022
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7308.40C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1022
2700
90
45
-
Ceiling recessed
03.7308.14CUQ
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Non IC
10.8
1022
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7308.14C90
Light Shadow Adjustable Trim 4 Spots Optic Wide Flood - Airtight IC Rated
10.8
1022
2700
90
45
-
Ceiling recessed
03.7305.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7
524
3000
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7305.40C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
524
3000
90
44
-
Ceiling recessed
03.7305.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7
524
3000
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7305.14C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
524
3000
90
44
-
Ceiling recessed
03.7304.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7
545
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7304.40C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
545
3000
90
45
-
Ceiling recessed
03.7304.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7
545
3000
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7304.14C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
545
3000
90
45
-
Ceiling recessed
03.7301.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7
491
2700
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7301.40C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
491
2700
90
44
-
Ceiling recessed
03.7301.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7
491
2700
90
44
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7301.14C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
491
2700
90
44
-
Ceiling recessed
03.7300.40CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7
511
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7300.40C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
511
2700
90
45
-
Ceiling recessed
03.7300.14CUQ
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Non IC
7
511
2700
90
45
Dimmable 0-10V, Dimmable ELV
Ceiling recessed
03.7300.14C90
Light Shadow Adjustable Trim 2 Spots Optic Wide Flood - Airtight IC Rated
7
511
2700
90
45
-
Ceiling recessed
Fixed Installation
Adjustable Installation
Wall Washer Installation
Product_Specification_LIGHT_SHADOW_TRIM

Compose your Light Shadow according to your needs

Have a look at this scheme for a quick product overview.

Light Shadow - Other Light Modules

(1)
Part of
Downlights

Light Shadow
